Premium SE-1 1/4" X 3/8" Oval Carbide Burr On 1/4" Shank Double Cut

Name: Premium SE-1 1/4" X 3/8" Oval Carbide Burr On 1/4" Shank Double Cut
Brand: CHENGDU BABOS CUTTING TECH CO.,LTD
SKU: SE-1
Availability: InStock

Brand Name:	BABOS
Model Number:	SE-1
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Oval Shape

Cut Diameter:

1/4 Inch

Cut Length:

3/8 Inch

Shank Diameter:

1/4 Inch

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

Oval end grinder burr bit

Egg Shape end grinder burr bit

double cut burr for granite 1/4 Shank

Product Description

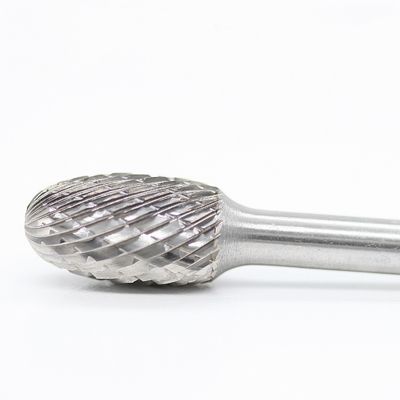

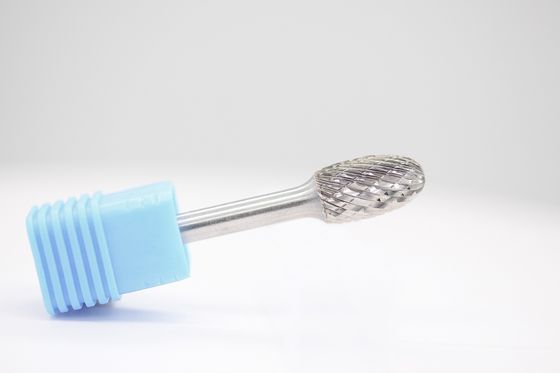

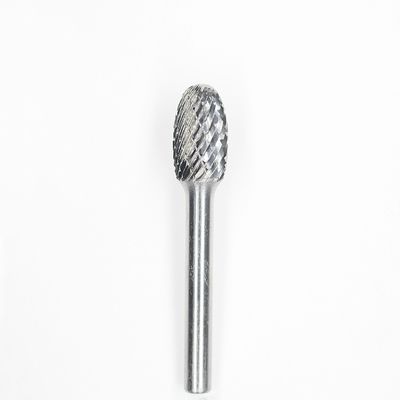

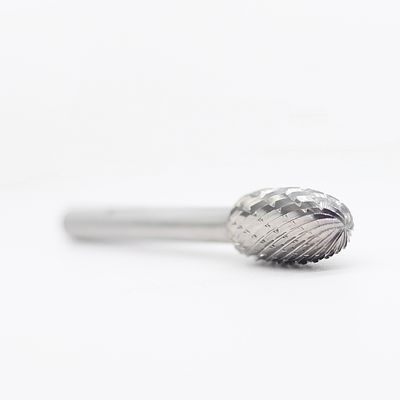

SE-1 Carbide Burr Oval Egg Shape Double Cut With 1/4'' Shank For Die Grinder Drill Bit

SE-1 Carbide Burr Oval Egg Shape

Premium SE-1 1/4" X 3/8" Oval Carbide Burr On 1/4" Shank Double Cut 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/4"

Length of Flute: 3/8"

Shank Diameter: 1/4”

The Combination of Head and Shank: Brazed

Cut Type: Standard Double Cut

Other Available Sizes Related to Type E Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	7	38	E0306	Solid
	5	8	46	E0508	Brazed
	6	10	48	E0610	Brazed
6	6	10	50	E0610	Brazed
	8	13	58	E0813	Brazed
	10	16	61	E1016	Brazed
	12	20	65	E1220	Brazed
	16	25	70	E1625	Brazed
	19	25	70	E1925	Brazed
8	12	20	65	E1220	Brazed
	16	25	70	E1625	Brazed
	19	25	70	E1925	Brazed
Inch Standard
1/8''	3/16"	9/32"	1-1/2"	SE-53	Solid
1/8''	1/4"	3/8"	1-8/9"	SE-51	Brazed
1/4''	3/8"	5/8"	2-3/8"	SE-3	Brazed
	1/2"	7/8"	2-5/8"	SE-5	Brazed
	5/8"	1"	2-3/4"	SE-6	Brazed
	3/4"	1"	2-3/4"	SE-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type E burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
