5/16" X 3/4" SC-2 Round Nose Cylinder Tungsten Carbide Burrs on 1/4" shank diameter

Name: 5/16" X 3/4" SC-2 Round Nose Cylinder Tungsten Carbide Burrs on 1/4" shank diameter
Brand: CHENGDU BABOS CUTTING TECH CO.,LTD
SKU: SC-2
Availability: InStock

Brand Name:	BABOS
Model Number:	SC-2
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Ball Nosed Cylinder

Cut Diameter:

5/16 Inch

Cut Length:

3/4 Inch

Shank Diameter:

1/4 Inch

Overall Length:

2-1/2 Inch

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

1 Piece

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

5/16” Tungsten Carbide Burrs

3/4” Tungsten Carbide Burrs

Product Description

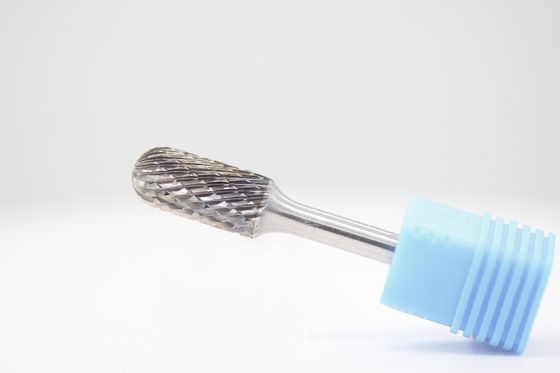

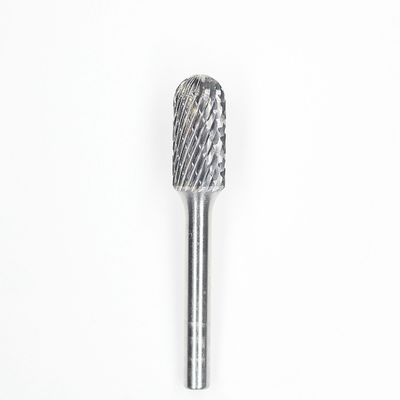

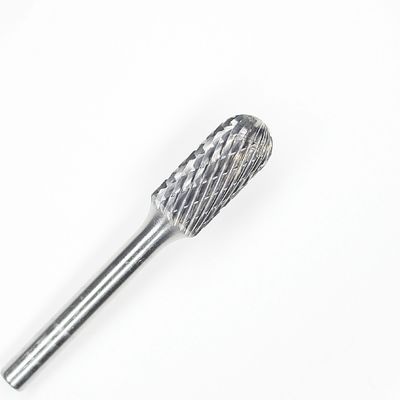

5/16" X 3/4" SC-2 Round Nose Cylinder Tungsten Carbide Burrs on 1/4" Shank Diameter

Description:

The SC-2 round nose cylinder tungsten carbide burr is a larger variation within the SC series, designed for tasks that require both precision and substantial material removal. Like other SC burrs, the SC-2 has a cylindrical shape with a rounded (radius) end, making it ideal for contouring, smoothing, and shaping operations. Constructed from tungsten carbide, it offers excellent durability, hardness, and resistance to high temperatures and wear.

The SC-2 carbide burr is commonly used in industries such as aerospace, automotive, metal fabrication, and tool making. Its design allows for efficient removal of material while maintaining control over contours and curved surfaces. It is typically used with die grinders or rotary tools for medium-duty work.

SC-2 Round Nose Cylinder Tungsten Carbide Burrs

5/16" X 3/4" SC-2 Round Nose Cylinder Tungsten Carbide Burrs on 1/4" shank diameter 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:5/16"

Length of Flute: 3/4"

Shank Diameter: 1/4”

OAL: 2-1/2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type C Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	11	38	C0211	Solid
	2.5	11	38	C2511	Solid
	3	13	38	C0313	Solid
	5	13	38	C0513	Brazed
	6	13	45	C0613	Brazed
6	6	16	63	C0616	Brazed
	6	25	65	C0625	Solid
	8	20	65	C0820	Brazed
	10	20	70	C1020	Brazed
	11	25	70	C1125	Brazed
	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
8	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
Inch Standard
1/8''	1/8"	1/2"	1-1/2"	SC-42	Solid
1/8''	1/4"	1/2"	2"	SC-51	Brazed
1/4''	3/16"	9/32"	2''	SC-14	Solid
	1/4"	5/8"	2''	SC-1	Solid
	1/4"	1"	2''	SC-1L	Solid
	3/8"	3/4''	2-1/2"	SC-3	Brazed
	7/16"	1"	2-3/4"	SC-4	Brazed
	1/2"	1"	2-3/4"	SC-5	Brazed
	5/8"	1"	2-3/4"	SC-6	Brazed
	3/4"	1"	2-3/4"	SC-7	Brazed
	7/8"	1"	2-3/4"	SC-8	Brazed
3/8''	1"	1"	2-3/4"	SC-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type C burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
