SC-1 carbide Burr 1/4" × 5/8" With 1/4" Shank Dia. Ball Nosed Cylinder Carbide Burrs

Name: SC-1 carbide Burr 1/4" × 5/8" With 1/4" Shank Dia. Ball Nosed Cylinder Carbide Burrs
Brand: CHENGDU BABOS CUTTING TECH CO.,LTD
SKU: SC-1
Availability: InStock

Brand Name:	BABOS
Model Number:	SC-1
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Ball Nosed Cylinder

Cut Diameter:

1/4 Inch

Cut Length:

5/8 Inch

Shank Diameter:

1/4 Inch

Overall Length:

2 Inch

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

1 Piece

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

1/4” Shank Dia Carbide Burr

Ball Nosed Cylinder Carbide Burr

1/4” Cylinder Carbide Burrs

Product Description

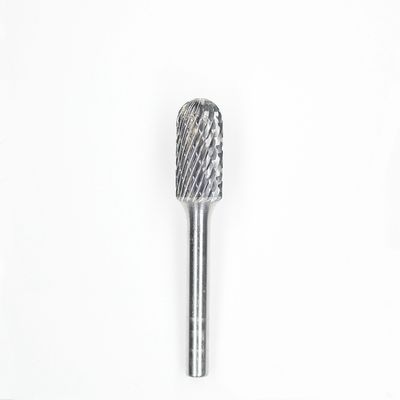

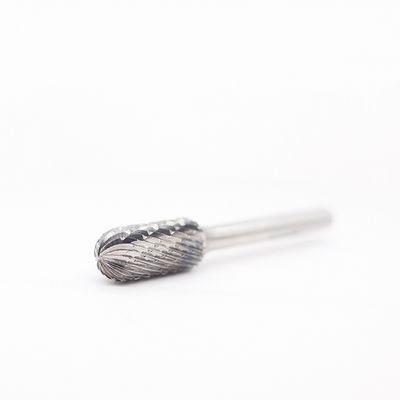

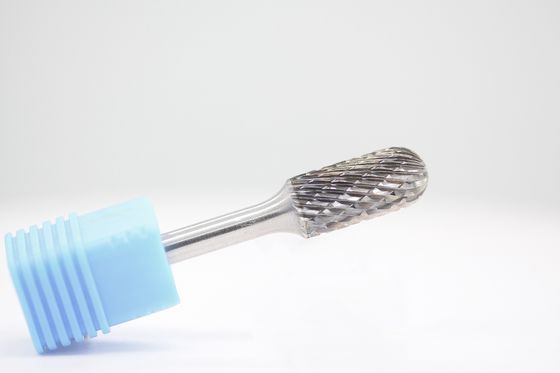

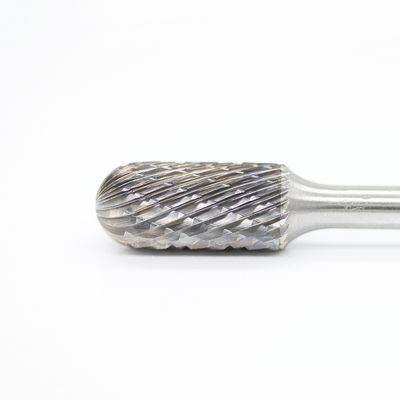

SC-1 carbide Burr 1/4" × 5/8" With 1/4" Shank Dia. Ball Nosed Cylinder Carbide Burrs

Description:

The SC-1 ball nosed cylinder carbide burr is part of the SC series of carbide burrs, featuring a cylindrical shape with a rounded end (radius end). This design is ideal for smoothing, contouring, and shaping tasks, providing both precision and versatility. Like other carbide burrs, the SC-1 is constructed from tungsten carbide, which ensures excellent durability and performance.

The SC-1 carbide burr is widely used in industries like automotive, aerospace, metalworking, and manufacturing, where detailed grinding and shaping are required. It works well for cleaning welds, smoothing sharp edges, and creating rounded contours in hard-to-reach areas. Typically, it is used with die grinders or rotary tools for optimal performance.

SC-1 carbide Burr 1/4" × 5/8" With 1/4" Shank Dia.

SC-1 carbide Burr 1/4" × 5/8" With 1/4" Shank Dia. Ball Nosed Cylinder Carbide Burrs 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/4"

Length of Flute: 5/8"

Shank Diameter: 1/4”

OAL: 2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type C Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	11	38	C0211	Solid
	2.5	11	38	C2511	Solid
	3	13	38	C0313	Solid
	5	13	38	C0513	Brazed
	6	13	45	C0613	Brazed
6	6	16	63	C0616	Brazed
	6	25	65	C0625	Solid
	8	20	65	C0820	Brazed
	10	20	70	C1020	Brazed
	11	25	70	C1125	Brazed
	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
8	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
Inch Standard
1/8''	1/8"	1/2"	1-1/2"	SC-42	Solid
1/8''	1/4"	1/2"	2"	SC-51	Brazed
1/4"	3/16"	9/32"	2''	SC-14	Solid
	1/4"	1"	2''	SC-1L	Solid
	5/16"	3/4''	2-1/2"	SC-2	Brazed
	3/8"	3/4''	2-1/2"	SC-3	Brazed
	7/16"	1"	2-3/4"	SC-4	Brazed
	1/2"	1"	2-3/4"	SC-5	Brazed
	5/8"	1"	2-3/4"	SC-6	Brazed
	3/4"	1"	2-3/4"	SC-7	Brazed
	7/8"	1"	2-3/4"	SC-8	Brazed
3/8''	1"	1"	2-3/4"	SC-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type C burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
