SB-9 Cylindrical End Cut Carbide Burrs 1" Cut Dia 1/4" Shank Dia Carbide Rotary Files

Name: SB-9 Cylindrical End Cut Carbide Burrs 1" Cut Dia 1/4" Shank Dia Carbide Rotary Files
Brand: CHENGDU BABOS CUTTING TECH CO.,LTD
SKU: SB-9
Availability: InStock

Brand Name:	BABOS
Model Number:	SB-9
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Cylinder With End Cut

Cut Diameter:

1 Inch

Cut Length:

1 Inch

Shank Diameter:

1/4 Inch

Overall Length:

2-3/4inch

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

1 Piece

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

1” Cut Dia Carbide Burrs

Product Description

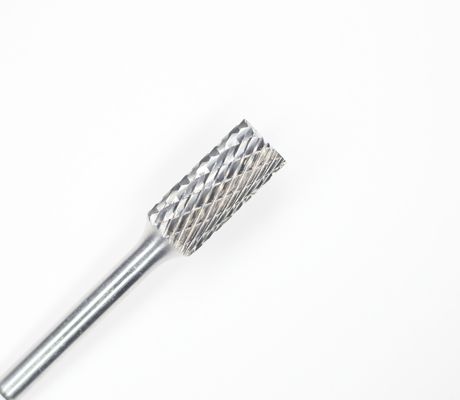

SB-9 Cylindrical End Cut Carbide Burrs 1" Cut Dia 1/4" Shank Dia Carbide Rotary Files

Description:

The SB-9 cylindrical end cut carbide burr is a specialized tool within the SB series, designed for precision and heavy-duty material removal, grinding, and shaping tasks. Like other SB burrs, it is constructed from tungsten carbide, offering durability and high performance in demanding applications.

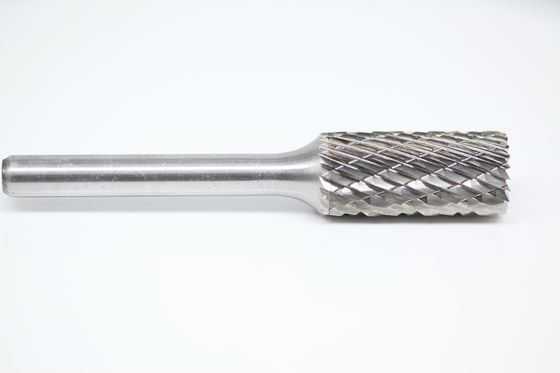

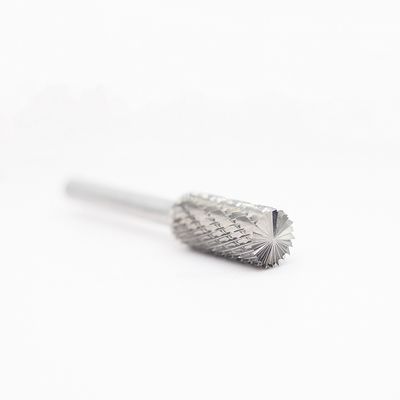

SB-9 Cylinder With End Cut Burrs On 1/4" Shank

SB-9 Cylindrical End Cut Carbide Burrs 1" Cut Dia 1/4" Shank Dia Carbide Rotary Files 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1"

Length of Flute: 1"

Shank Diameter: 1/4”

OAL: 2-3/4"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type B Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	1.5	6	38	B1506	Solid
	2	11	38	B0211	Solid
	2.5	12	38	B2512	Solid
	3	13	38	B0313	Solid
	4	13	51	B0413	Brazed
	5	13	51	B0513	Brazed
	6	13	51	B0613	Brazed
6	6	16	63	B0616	Brazed
	6	25	65	B0625	Solid
	8	20	65	B0820	Brazed
	10	20	70	B1020	Brazed
	11	25	70	B1125	Brazed
	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
8	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
Inch Standard
3/8''	7/8"	1"	2-3/4"	SB-8	Brazed
1/8''	1/16"	1/4"	1-1/2"	SB-41	Solid
1/8''	1/8"	9/16"	1-1/2"	SB-43	Solid
1/4''	5/32"	5/8"	2"	SB-13	Solid
	3/16"	5/8"	2''	SB-14	Solid
	1/4"	5/8"	2''	SB-1	Solid
	1/4"	1"	2''	SB-1L	Solid
	5/16"	3/4''	2-1/2"	SB-2	Brazed
	3/8"	3/4''	2-1/2"	SB-3	Brazed
	7/16"	1"	2-3/4"	SB-4	Brazed
	1/2"	1"	2-3/4"	SB-5	Brazed
	5/8"	1"	2-3/4"	SB-6	Brazed
	3/4"	1"	2-3/4"	SB-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type B burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
