SB-1 Cylindrical End Cut Carbide Burrs 1/4" Cut Dia 1/4" Shank Dia Solid Carbide Rotary Files

Name: SB-1 Cylindrical End Cut Carbide Burrs 1/4" Cut Dia 1/4" Shank Dia Solid Carbide Rotary Files
Brand: CHENGDU BABOS CUTTING TECH CO.,LTD
SKU: SB-1
Price: Negotiable USD
Availability: InStock

Brand Name:	BABOS
Model Number:	SB-1
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Cylinder With End Cut

Cut Diameter:

1/4"

Cut Length:

5/8"

Shank Diameter:

1/4"

Overall Length:

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

1 Piece

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

Solid Carbide Rotary Files

1/4” Cut Dia Carbide Burrs

Product Description

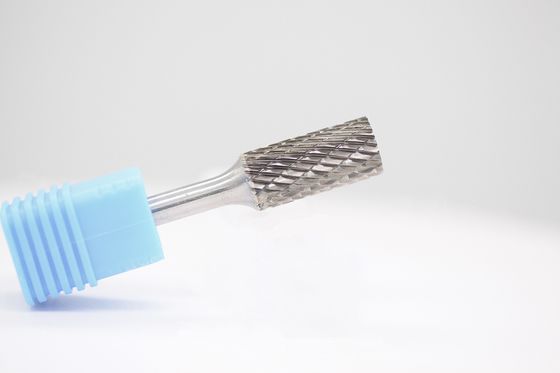

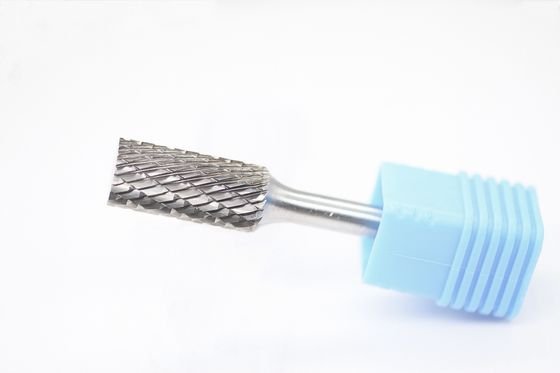

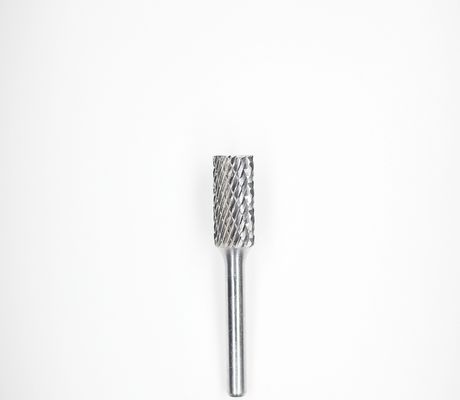

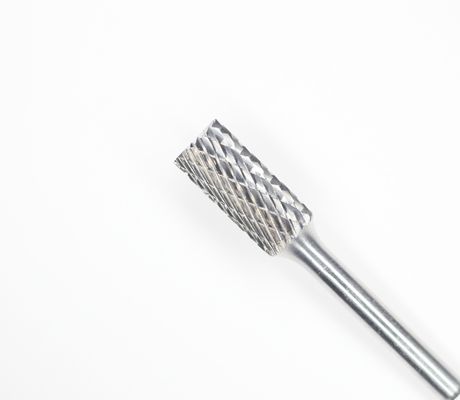

SB-1 Cylindrical End Cut Carbide Burrs 1/4" Cut Dia 1/4" Shank Dia Solid Carbide Rotary Files

Our SB‑series solid tungsten carbide rotary burrs are widely used for metal deburring, weld cleaning, material removal, shaping and surface finishing. Each burr features high‑density carbide substrate, sharp flute geometry and stable cutting performance, suitable for die grinder operation in metal fabrication, machinery repair and automotive workshops.

We support bulk order and OEM customization on burr shape, cut type and shank size. Strict dimensional tolerance ensures consistent performance batch‑to‑batch.

This SB‑1 carbide burr comes with working diameter 1/4"(6.35 mm) and cutting length 1/2"(12.7 mm). Compact size makes it ideal for fine‑detail finishing, narrow‑space deburring and light material removal on thin steel sheet, aluminum and stainless steel. Recommended for low‑to‑medium stock removal requirements.

SB-1 Cylinder With End Cut Burrs On 1/4" Shank

SB-1 Cylindrical End Cut Carbide Burrs 1/4" Cut Dia 1/4" Shank Dia Solid Carbide Rotary Files

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter: 1/4”

Length of Flute: 5/8”

Shank Diameter: 1/4”

OAL: 2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type B Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Legth of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	1.5	6	38	B1506	Solid
	2	11	38	B0211	Solid
	2.5	12	38	B2512	Solid
	3	13	38	B0313	Solid
	4	13	51	B0413	Brazed
	5	13	51	B0513	Brazed
	6	13	51	B0613	Brazed
6	6	16	63	B0616	Brazed
	6	25	65	B0625	Solid
	8	20	65	B0820	Brazed
	10	20	70	B1020	Brazed
	11	25	70	B1125	Brazed
	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
8	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
Inch Standard
3/8''	7/8"	1"	2-3/4"	SB-8	Brazed
1/8''	1/16"	1/4"	1-1/2"	SB-41	Solid
1/8''	1/8"	9/16"	1-1/2"	SB-43	Solid
1/4''	5/32"	5/8"	2"	SB-13	Solid
	3/16"	5/8"	2''	SB-14	Solid
	1/4"	1"	2''	SB-1L	Solid
	5/16"	3/4''	2-1/2"	SB-2	Brazed
	3/8"	3/4''	2-1/2"	SB-3	Brazed
	7/16"	1"	2-3/4"	SB-4	Brazed
	1/2"	1"	2-3/4"	SB-5	Brazed
	5/8"	1"	2-3/4"	SB-6	Brazed
	3/4"	1"	2-3/4"	SB-7	Brazed
	1"	1"	2-3/4"	SB-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type B burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
