Solid Carbide Rotary Burr 3mm Cylindrical With End Cut B Shape Double Cut For Steel

Brand Name:	BABOS
Model Number:	B0314X03
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Cylindrical With End Cut

Cut Diameter:

3mm

Cut Length:

14mm

Shank Diameter:

3mm

Overall Length:

76mm

Flute(Cut) Type:

Standard Double Cut(Single Cut, Aluminum Cut, Diamond Cut, Fine Cut, Wide Cut, Stainless Steel Cut)

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

Max Rpm:

50,000

Packaging Details:

Plastic Box

Product Description

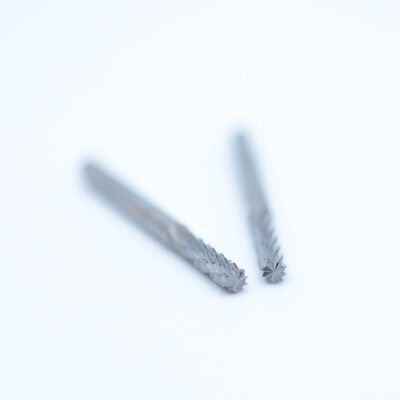

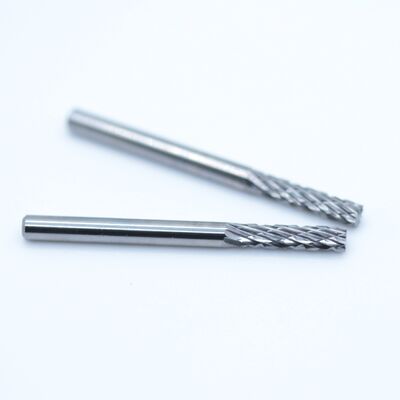

Solid Carbide Rotary Burr 3mm Cylindrical With End Cut B Shape Double Cut For Steel

This premium solid carbide rotary burr features a B-shape cylindrical design with end cut and double cut flute pattern, specially engineered for high-performance machining on steel and various ferrous materials. With a cutting diameter of 3mm, cutting length of 14mm, 3mm shank diameter, and total length of 76mm, it delivers stable clamping, balanced high-speed rotation, and consistent material removal.

The double cut structure ensures smooth finishing, low vibration, and extended tool life, ideal for deburring, grinding, shaping, and contouring in metalworking, mold making, and general fabrication. Compatible with most electric and pneumatic die grinders.

B Shape Carbide Burr | Cut Dia: 3mm | Cut Length: 14mm | Shank Dia: 3mm | Overall Length: 76mm

Solid Carbide Rotary Burr 3mm Cylindrical With End Cut B Shape Double Cut For Steel 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3mm

Length of Flute: 14mm

Shank Diameter:3mm

OAL: 75mm

Cut Type: Standard Double Cut(other cut types available: Single Cut, Aluminum Cut, Diamond Cut, Fine Cut, Wide Cut, Stainless Steel)

Other Available Sizes Related to Type F Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length. (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	13	38	F0313	Solid
	5	13	51	F0513	Brazed
	6	13	51	F0613	Brazed
6	6	18	63	F0618	Brazed
	8	20	65	F0820	Brazed
	10	20	65	F1020	Brazed
	11	25	70	F1125	Brazed
	12	25	70	F1225	Brazed
	16	25	70	F1625	Brazed
	19	25	70	F1925	Brazed
8	12	25	70	F1225	Brazed
	16	25	70	F1625	Brazed
	19	25	70	F1925	Brazed
Inch Standard
1/8''	1/8''	1/2''	1/2''	SF-42	Solid
1/8''	1/4''	1/2''	2''	SF-51	Brazed
1/4''	3/8''	3/4''	1/2''	SF-3	Brazed
	7/16''	1''	3/4''	SF-4	Brazed
	1/2''	3/4''	1/2''	SF-13	Brazed
	5/8''	1''	3/4''	SF-6	Brazed
	3/4''	1''	3/4''	SF-7	Brazed
	3/4''	1/4''	3''	SF-14	Brazed
3/8''	3/4''	1/4''	1/4''	SF-15	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type F burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
