10mm Dia Ball Carbide Burrs With Customized 200mm Shank Length On 1/4" Shank Dia Single Cut

10mm Dia Ball Carbide Burrs With Customized 200mm Shank Length On 1/4" Shank Dia Single Cut

Brand Name:	BABOS
Model Number:	SD-9
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Ball Shape

Cut Diameter:

24mm

Cut Length:

21mm

Shank Diameter:

1/4"

Overall Length:

124nn

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

1 Pcs

Max Rpm:

50,000

Packaging Details:

Plastic Box

Product Description

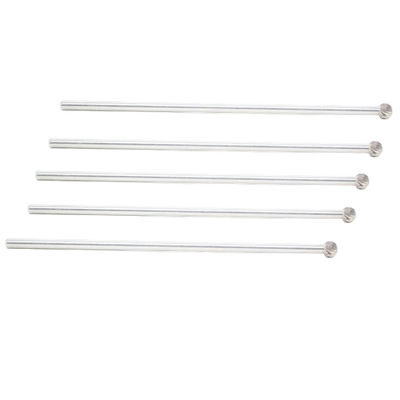

10mm Dia Ball Carbide Burrs With Customized 200mm Shank Length On 1/4" Shank Dia Single Cut

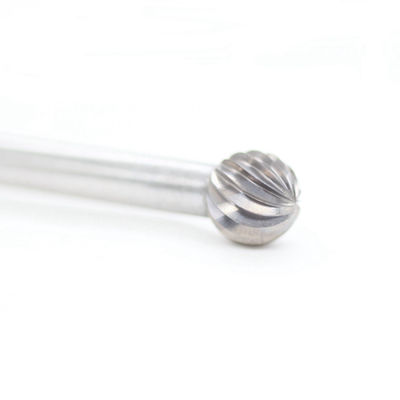

BABOS 10mm dia ball carbide burr with customized 200mm long shank on 1/4'' shank dia, single cut design for efficient metal grinding, deburring, and shaping.

10mm Dia Ball Carbide Burrs With Customized 200mm Shank Length On 1/4" Shank Dia Single Cut 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:10mm

Length of Flute: 9mm

Shank Diameter: 6mm

OAL: 209mm

Cut Type: Single Cut

Other Available Standard Sizes Related to Type D Ball Shape Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	1.8	38	D0202	Solid
	2.5	2.3	38	D2525	Solid
	3	2.5	38	D0325	Solid
	4	3	41	D0403	Brazed
	5	4	42	D0504	Brazed
	6	5	43	D0605	Brazed
6	6	5	50	D0605	Brazed
	8	7	52	D0807	Brazed
	10	9	54	D1009	Brazed
	12	10	55	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
8	12	10	56	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
Inch Standard
1/8''	1/8"	1/8"	1-1/2"	SD-42	Solid
	3/16"	5/32"	1-1/2"	SD-53	Brazed
	1/4"	7/32"	1-3/4"	SD-51	Brazed
1/4''	3/16"	1/8"	2''	SD-14	Solid
	1/4"	7/32"	2''	SD-1	Solid
	5/16"	1/4"	2"	SD-2	Brazed
	3/8"	5/16"	2-1/16"	SD-3	Brazed
	7/16"	3/8"	2-1/7"	SD-4	Brazed
	1/2"	7/16"	2-1/5"	SD-5	Brazed
	5/8"	9/16"	2-1/3"	SD-6	Brazed
	3/4"	11/16"	2-4/9"	SD-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type D burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
