19mm Cut Dia D-Ball Shape Carbide Burrs With 8mm Shank Dia Double Cut Carbide Rotary Burr

Large Image : 19mm Cut Dia D-Ball Shape Carbide Burrs With 8mm Shank Dia Double Cut Carbide Rotary Burr

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SD-Ball Shape
Document:	BABOS CARBIDE BURR CATALOGU...UE.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Ball Shape
Cut Diameter:	19mm	Cut Length:	18mm
Shank Diameter:	8mm	Overall Length:	63mm
Flute Type:	Standard Double Cut	Suitable For:	Machining Surface Profile Of Workpiece
Application:	Deburring, Shaping, And Finishing	Package Quantity:	1 Pcs
Max Rpm:	50,000

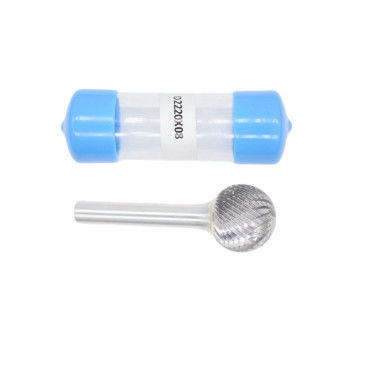

19mm Cut Dia D-Ball Shape Carbide Burrs With 8mm Shank Dia Double Cut Carbide Rotary Burr

The 19mm Cut Dia D-Ball Shape Carbide Burr with 8mm Shank Dia Double Cut Carbide Rotary Burr is a high-performance, durable, and versatile tool suited for professional and industrial use where efficient material removal, precise contouring, and a relatively smooth finish are critical.

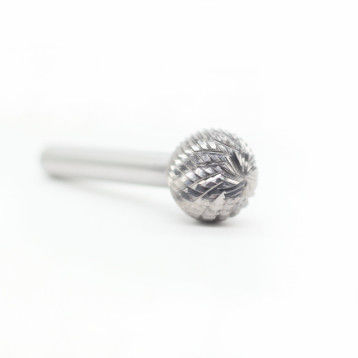

Ball Shape Carbide Burr On 8mm Shank

19mm Cut Dia D-Ball Shape Carbide Burrs With 8mm Shank Dia Double Cut Carbide Rotary Burr 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:19mm

Length of Flute: 18mm

Shank Diameter: 8mm

OAL: 63mm

Cut Type: Standard Double Cut

Other Available Sizes Related to Type D Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	1.8	38	D0202	Solid
	2.5	2.3	38	D2525	Solid
	3	2.5	38	D0325	Solid
	4	3	41	D0403	Brazed
	5	4	42	D0504	Brazed
	6	5	43	D0605	Brazed
6	6	5	50	D0605	Brazed
	8	7	52	D0807	Brazed
	10	9	54	D1009	Brazed
	12	10	55	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
8	12	10	56	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2520	Brazed
Inch Standard
1/8''	1/8"	1/8"	1-1/2"	SD-42	Solid
	3/16"	5/32"	1-1/2"	SD-53	Brazed
	1/4"	7/32"	1-3/4"	SD-51	Brazed
1/4''	3/16"	1/8"	2''	SD-14	Solid
	1/4"	7/32"	2''	SD-1	Solid
	5/16"	1/4"	2"	SD-2	Brazed
	7/16"	3/8"	2-1/7"	SD-4	Brazed
	1/2"	7/16"	2-1/5"	SD-5	Brazed
	5/8"	9/16"	2-1/3"	SD-6	Brazed
	3/4"	11/16"	2-4/9"	SD-7	Brazed
	1"	15/16"	2-7/8"	SD-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type D burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

19mm Cut Dia D-Ball Shape Carbide Burrs With 8mm Shank Dia Double Cut Carbide Rotary Burr 1
