12mm Dia 124512*100L-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron

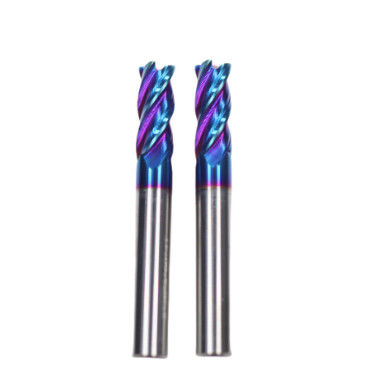

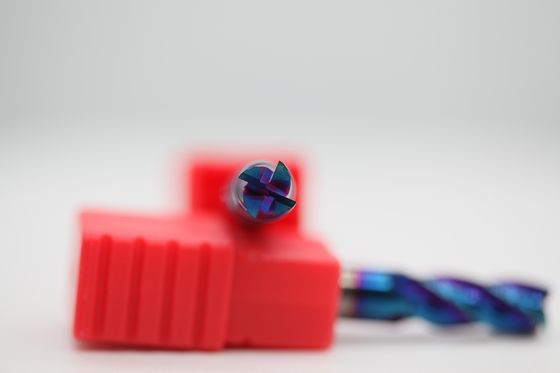

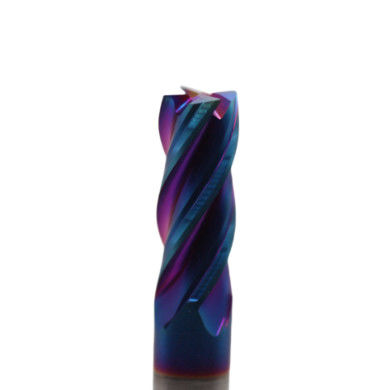

Large Image : 12mm Dia 12*45*12*100L-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	124512*100L-4F

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000PCS per month

Contact Now

Detailed Product Description

Cut Diameter:	12mm	Cut Length:	45mm
Shank Diameter:	12mm	Overall Length:	100mm
Product Material:	Solid Tungsten Carbide	Coating/Finish Type:	TiAISiNX
Helix Angle:	35° Or Customized	Application:	Side Milling, Face Milling,End Milling
End Type:	Square Flat End
Highlight:	12mm Flat End Mill , 12mm Square End Mill , 12mm End Mill

12mm Dia 124512*100L-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron

Product Description:

This 12mm diameter 4-flute square end mill is designed for high-efficiency machining of steel and cast iron. Featuring a 35° helix angle, it provides improved chip evacuation and reduced cutting forces, making it ideal for smooth and precise milling. The advanced TiAlSiNX coating enhances wear resistance, heat resistance, and tool life, ensuring excellent performance in high-speed CNC applications.

Specifications:

Flutes: 4
Cutting Diameter: 12mm
Cutting Length: 45mm
Shank Diameter: 12mm
Overall Length: 100mm
Helix Angle: 35°
Material: Solid Carbide
Coating: TiAlSiN-X (Titanium Aluminum Silicon Nitride)
Application: Suitable for steel, cast iron, and hardened materials

12mm Dia 12*45*12*100L-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron 0

Product Specifications

HRC65 Carbide 4 Flutes Flat End Mill
Standard Length
Standard Length
Cut Dia (mm)	Cut Length (mm)	Shank Dia (mm)	Overall Length (mm)	Flutes	Helix Angle
D	Lc	d	L	Flutes	Helix Angle
3	8	3	50	4	35°
1	3	4	50	4	35°
1.5	4	4	50	4	35°
2	6	4	50	4	35°
2.5	7	4	50	4	35°
3	8	4	50	4	35°
4	10	4	50	4	35°
5	13	5	50	4	35°
5	13	6	50	4	35°
6	15	6	50	4	35°
7	18	8	60	4	35°
8	20	8	60	4	35°
10	25	10	75	4	35°
12	30	12	75	4	35°
14	35	14	80	4	35°
14	45	14	100	4	35°
16	45	16	100	4	35°
18	45	18	100	4	35°
20	45	20	100	4	35°
Extended Length
Cut Dia (mm)	Cut Length (mm)	Shank Dia (mm)	Overall Length (mm)	Flutes	Helix Angle
D	Lc	d	L	Flutes	Helix Angle
4	16	4	75	4	35°
4	20	4	100	4	35°
5	20	5	75	4	35°
5	25	5	100	4	35°
6	20	6	75	4	35°
6	30	6	100	4	35°
6	40	6	150	4	35°
8	25	8	75	4	35°
8	35	8	100	4	35°
8	50	8	150	4	35°
10	40	10	100	4	35°
10	50	10	150	4	35°
12	45	12	100	4	35°
12	55	12	150	4	35°
14	60	14	150	4	35°
16	60	16	150	4	35°
18	60	18	150	4	35°
20	70	20	150	4	35°

Key Features:

✅ 35° Helix Angle – Reduces cutting resistance and improves surface finish.
✅ 4-Flute Design – Enhances stability and allows for efficient material removal.
✅ TiAlSiNX Coating – Provides superior hardness, oxidation resistance, and extended tool life.
✅ Solid Carbide Construction – Ensures high rigidity, strength, and durability.
✅ Square End Geometry – Perfect for slotting, profiling, contouring, and finishing.
✅ Precision Ground – Offers excellent accuracy and performance for CNC machining.
