18mm Dia 186018*150L-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron

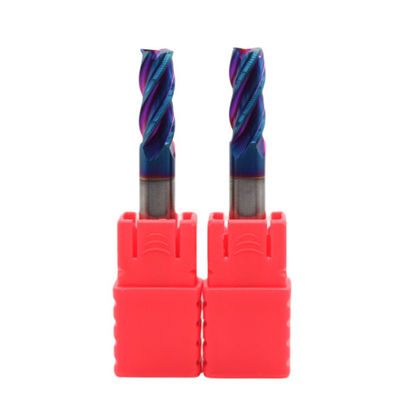

Large Image : 18mm Dia 18*60*18*150L-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	186018*150L-4F

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000PCS per month

Contact Now

Detailed Product Description

Cut Diameter:	18mm	Cut Length:	60mm
Shank Diameter:	18mm	Overall Length:	150mm
Product Material:	Solid Tungsten Carbide	Coating/Finish Type:	TiAISiNX
Helix Angle:	35° Or Customized	Application:	Side Milling, Face Milling,End Milling
End Type:	Square Flat End
Highlight:	18mm Flat End Mill , 18mm End Mill , 18mm Square End Mill

18mm Dia 186018*150L-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron

Product Description:

This 18mm diameter 4-flute flat end mill is designed for precision milling in industrial applications. The advanced TiAlSiNX coating offers superior heat and wear resistance, ensuring durability in high-speed machining operations. Its square-end geometry makes it ideal for slotting, contouring, and finishing applications on steel, cast iron, and hardened materials.

Specifications:

Flutes: 4
Cutting Diameter: 18mm
Cutting Length: 60mm
Shank Diameter: 18mm
Overall Length: 150mm
Material: Solid Carbide
Coating: TiAISiNX
Application: Suitable for milling steel, cast iron, and hardened materials

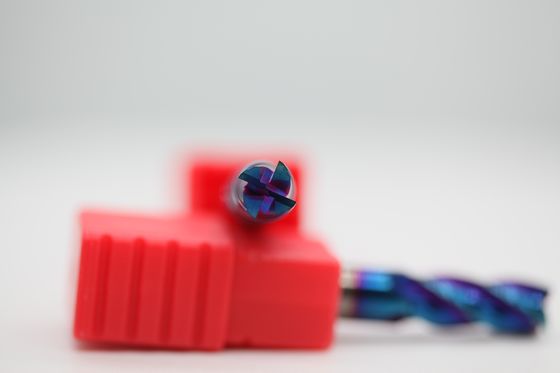

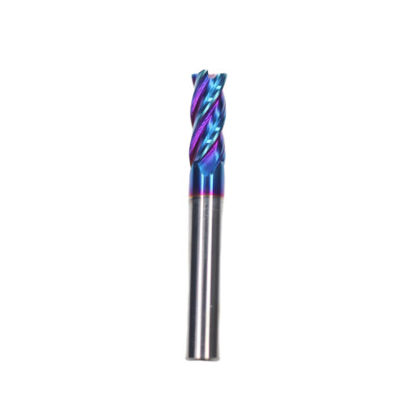

18mm Dia 18*60*18*150L-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron 0

Product Specifications

HRC65 Carbide 4 Flutes Flat End Mill
Standard Length
Standard Length
Cut Dia (mm)	Cut Length (mm)	Shank Dia (mm)	Overall Length (mm)	Flutes	Helix Angle
D	Lc	d	L	Flutes	Helix Angle
3	8	3	50	4	35°
1	3	4	50	4	35°
1.5	4	4	50	4	35°
2	6	4	50	4	35°
2.5	7	4	50	4	35°
3	8	4	50	4	35°
4	10	4	50	4	35°
5	13	5	50	4	35°
5	13	6	50	4	35°
6	15	6	50	4	35°
7	18	8	60	4	35°
8	20	8	60	4	35°
10	25	10	75	4	35°
12	30	12	75	4	35°
14	35	14	80	4	35°
14	45	14	100	4	35°
16	45	16	100	4	35°
18	45	18	100	4	35°
20	45	20	100	4	35°
Extended Length
Cut Dia (mm)	Cut Length (mm)	Shank Dia (mm)	Overall Length (mm)	Flutes	Helix Angle
D	Lc	d	L	Flutes	Helix Angle
4	16	4	75	4	35°
4	20	4	100	4	35°
5	20	5	75	4	35°
5	25	5	100	4	35°
6	20	6	75	4	35°
6	30	6	100	4	35°
6	40	6	150	4	35°
8	25	8	75	4	35°
8	35	8	100	4	35°
8	50	8	150	4	35°
10	40	10	100	4	35°
10	50	10	150	4	35°
12	45	12	100	4	35°
12	55	12	150	4	35°
14	60	14	150	4	35°
16	60	16	150	4	35°
18	60	18	150	4	35°
20	70	20	150	4	35°

Key Features:

✅ 4-Flute Design – Optimized for efficient material removal and superior surface finish.
✅ TiAlSiNX Coating – Provides high hardness, oxidation resistance, and extended tool life.
✅ Solid Carbide Construction – Ensures high rigidity and cutting stability.
✅ Precision Ground – Offers excellent accuracy and performance in CNC machining.
✅ Square End Geometry – Suitable for sharp and precise slotting, profiling, and contouring.
