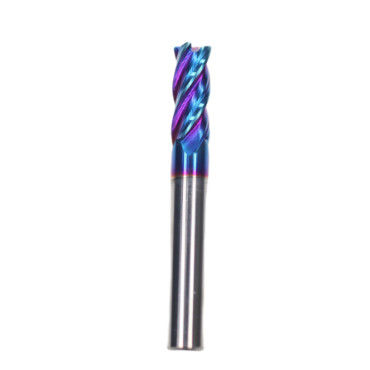

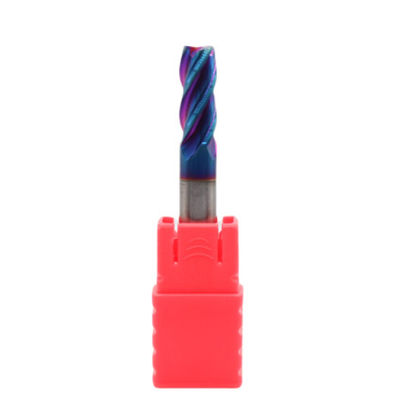

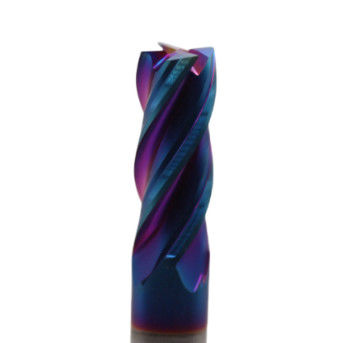

10mm Dia 102510*75-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron

Name: 10mm Dia 10*25*10*75-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron
Brand: CHENGDU BABOS CUTTING TECH CO.,LTD
SKU: 10*25*10*75-4F
Availability: InStock

Brand Name:	BABOS
Model Number:	102510*75-4F
MOQ:	10pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cut Diameter:

10mm

Cut Length:

25mm

Shank Diameter:

10mm

Overall Length:

75mm

Product Material:

Solid Tungsten Carbide

Coating/Finish Type:

TiAISiNX

Helix Angle:

35° Or Customized

Application:

Side Milling, Face Milling,End Milling

End Type:

Square Flat End

Packaging Details:

Plastic Box

Highlight:

10mm Flat End Mill

Cast Iron Flat End Mill

102510*75 Flat End Mill

Product Description

20mm Dia 102510*75-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron

Product Description:

This 4-flute square end mill is engineered for high-precision milling of steel and cast iron, offering enhanced durability and heat resistance. With its TiAlSiNX coating, this tool ensures superior wear resistance and extended tool life, making it an excellent choice for demanding machining applications.

Specifications:

Flutes: 4
Cutting Diameter: 10mm
Cutting Length: 25mm
Shank Diameter: 10mm
Overall Length: 75mm
Material: Solid Carbide
Coating: TiAISiNX
Application: Suitable for milling steel, cast iron, and hardened materials

10mm Dia 10*25*10*75-4F Flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron 0

Product Specifications

HRC65 Carbide 4 Flutes Flat End Mill
Standard Length
Standard Length
Cut Dia (mm)	Cut Length (mm)	Shank Dia (mm)	Overall Length (mm)	Flutes	Helix Angle
D	Lc	d	L	Flutes	Helix Angle
3	8	3	50	4	35°
1	3	4	50	4	35°
1.5	4	4	50	4	35°
2	6	4	50	4	35°
2.5	7	4	50	4	35°
3	8	4	50	4	35°
4	10	4	50	4	35°
5	13	5	50	4	35°
5	13	6	50	4	35°
6	15	6	50	4	35°
7	18	8	60	4	35°
8	20	8	60	4	35°
10	25	10	75	4	35°
12	30	12	75	4	35°
14	35	14	80	4	35°
14	45	14	100	4	35°
16	45	16	100	4	35°
18	45	18	100	4	35°
20	45	20	100	4	35°
Extended Length
Cut Dia (mm)	Cut Length (mm)	Shank Dia (mm)	Overall Length (mm)	Flutes	Helix Angle
D	Lc	d	L	Flutes	Helix Angle
4	16	4	75	4	35°
4	20	4	100	4	35°
5	20	5	75	4	35°
5	25	5	100	4	35°
6	20	6	75	4	35°
6	30	6	100	4	35°
6	40	6	150	4	35°
8	25	8	75	4	35°
8	35	8	100	4	35°
8	50	8	150	4	35°
10	40	10	100	4	35°
10	50	10	150	4	35°
12	45	12	100	4	35°
12	55	12	150	4	35°
14	60	14	150	4	35°
16	60	16	150	4	35°
18	60	18	150	4	35°
20	70	20	150	4	35°

Key Features:

✅ High-Performance Cutting – 4-flute design ensures smooth and efficient material removal.
✅ TiAlSiNX Coating – Provides exceptional hardness, wear resistance, and heat stability.
✅ Square End Design – Perfect for slotting, profiling, and contouring.
✅ Optimized Geometry – Designed for stability and accuracy in high-speed CNC machining.
