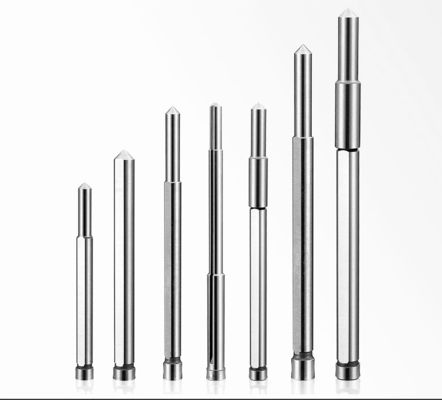

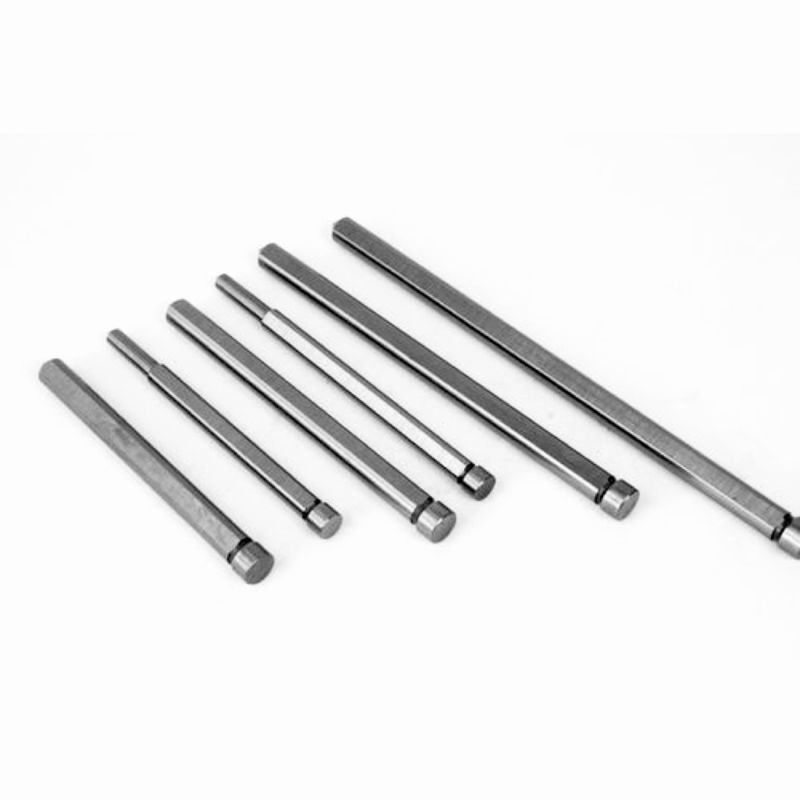

Accessories Of Annular Cutter , Flat Pilot Pin , Groove Pilot Pin , 2-Section Pilot Pin

Pilot Pin also called Center Positioning Pilot Pin, is used for pisiting, cooling when cutting and popup material core after cutting. There are there kinds of Pilot Pin:

1. Flat Pilot Pin

• With 6.34mm diameter, suitable for the annular cutter with 6.35mm center hole.

• With 7.89mm diameter, suitable for the annular cutter with8.0mm center hole.

2. Groove Pilot Pin

• With 7.98 mm diameter, applicable under the combination application of adpter with 8.0mm pilot pin hole and annularcutter with 6.35mm pilot pin hole.

3. 2section Pilot Pin

• With 7.98mm diameter, suitable for the annular cutter with 8.00mm center hole.
