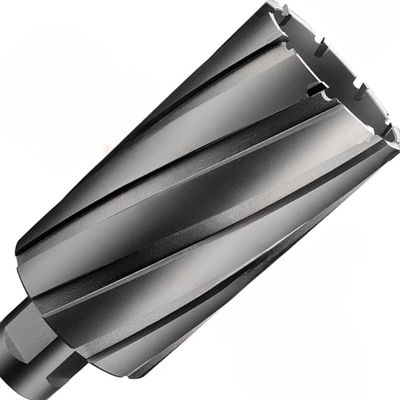

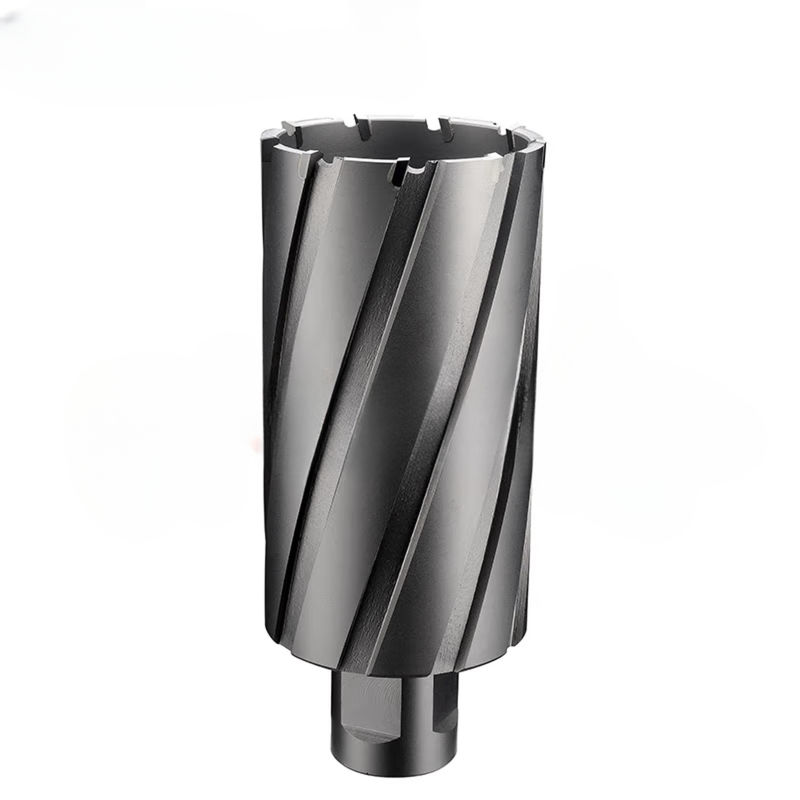

Carbide-Tipped Annular Cutter, 30mm Diameter X 75mm Depth With 19.05 Weldon Shank
Product Description:
This product is a highly efficient drilling tool optimized for fast, precise large-hole drilling in steel. Its design features a 30mm diameter and 75mm cutting depth, making it perfectly suited for the task it was created for.
The tool is constructed with a carbide-tipped design that ensures maximum longevity and efficient cutting. It is capable of drilling through thick steel with ease, even when the material is rusted or corroded. This makes the tool an excellent choice for professionals who demand the highest level of performance from their equipment.
Features:
- Product Name: TCT Annular Cutter
- Shank Type: Weldon Shank
- Material: Tungsten Carbide Tipped
- Shank Diameter: 19.05mm
- Service: OEM
- Cutting Diameter: 30mm
This TCT Annular Cutter is a high-quality Hole Saw Drill Bit made with tungsten carbide tipped material. It is suitable for metal cutting and drilling holes with precision. The Weldon Shank ensures better grip and stability during the drilling process. With a cutting diameter of 30mm, this Metal Cutting Annular Cutter is the perfect Hole Drilling Tool for your project needs.
Technical Parameters:
| Cutting Diameter |
30mm |
| Cutting Depth |
75mm |
| Shank Diameter |
19.05mm |
| Shank Type |
Weldon Shank |
| Service |
OEM |
| Material |
Tungsten Carbide Tipped |
| Suitable for |
Steel, Stainless Steel, Cast Iron, Aluminum |
| Application |
Metal Drilling |
| Compatibility |
Fits Most Magnetic Drilling Machines |
This TCT Annular Cutter is a type of Hole Saw Drill Bit, which is a Rotary Cutting Tool used for metal drilling.
Applications:
The TCT annular cutter with 19.05mm Weldon shank is designed to make hole cutting and processing of annular grooves on magnetic drills and press easier and more efficient. It is a versatile tool that can also be used with machine tools such as mills and large drill presses that have tool holders.
The TCT annular cutter features a high-speed steel body and tungsten carbide tipped teeth that are durable and reliable. The teeth are sharp and can cut through a variety of materials, including steel, stainless steel, cast iron, and non-ferrous metals.
The 19.05mm Weldon shank is easy to install and provides a secure connection between the cutter and the drilling machine. It is compatible with most magnetic drills and press available on the market.
If you need to make holes or annular grooves on metal materials, the TCT annular cutter with 19.05mm Weldon shank is an excellent choice. It can save you time and effort while delivering precise and accurate results every time.
Product Specifications:
Cutter Diameter
(mm) |
Cutting Depth
(mm) |
Shank Diameter
(mm) |
Cutter Diameter
(mm) |
Cutting Depth
(mm) |
Shank Diameter
(mm) |
|
| 12-21 |
35/50 |
Weldon Shank(19.05)
Universal Shank(19.05)
FEIN Quick-In Shank(18)
|
14-20 |
75/100 |
Weldon Shank(19.05)
Universal Shank(19.05)
FEIN Quick-In Shank(18)
|
| 22-25 |
21-25 |
| 26-29 |
26-30 |
| 30-35 |
31-35 |
| 36-42 |
36-40 |
| 43-50 |
41-45 |
| 51-53 |
46-50 |
| 54-55 |
51-55 |
| 56-60 |
56-60 |
| 61-65 |
61-65 |
| 66-70 |
66-70 |
| 71-75 |
71-75 |
| 76-80 |
76-80 |
| 81-85 |
81-85 |
| 86-90 |
86-90 |
| 91-95 |
91-95 |
| 96-100 |
96-100 |
*Please contact us if you are looking for the special non-standard TCT annular cutters. We can design and make special non-standard TCT annular cutters according to client's drawings.
Shank Selection Guide
| Weldon shank |
Universal Shank |
FEIN Quick-In Shank |
 |
|
|
