20mm 4flutes flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron 204520*100

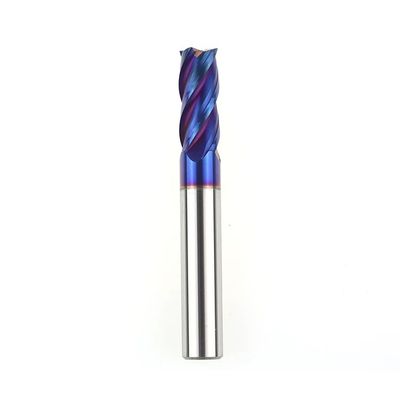

Large Image : 20mm 4flutes flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron 20*45*20*100

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	204520*100-4F

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000PCS per month

Contact Now

Detailed Product Description

Cut Diameter:	20mm	Cut Length:	45mm
Shank Diameter:	20mm	Overall Length:	100mm
Product Material:	Solid Tungsten Carbide	Coating/Finish Type:	TiAISiNX
Helix Angle:	35° Or Customized	Application:	Side Milling, Face Milling,End Milling
End Type:	Square Flat End
Highlight:	45mm Steel End Mill , Steel End Mill 20mm , Square end mill bits for steel

20mm 4flutes flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron 204520*100

Product Description:

This 20mm 4-flute square end mill is designed for high-efficiency milling of steel and cast iron, offering excellent wear resistance and extended tool life. Featuring an advanced TiAlSiN-X coating, this end mill withstands high temperatures and ensures smooth, precise cutting performance.

Specifications:

Flutes: 4
Cutting Diameter: 20mm
Cutting Length: 45mm
Shank Diameter: 20mm
Overall Length: 100mm
Material: Solid Carbide
Coating: TiAlSiN-X (Titanium Aluminum Silicon Nitride)
Application: Suitable for milling steel, cast iron, and hardened materials

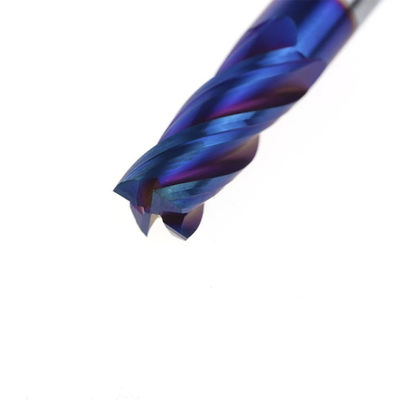

20mm 4flutes flat End Mill TiAISiNX Square End Mill For Steel & Cast Iron 20*45*20*100 0

Product Specifications

HRC65 Carbide 4 Flutes Flat End Mill
Standard Length
Standard Length
Cut Dia (mm)	Cut Length (mm)	Shank Dia (mm)	Overall Length (mm)	Flutes	Helix Angle
D	Lc	d	L	Flutes	Helix Angle
3	8	3	50	4	35°
1	3	4	50	4	35°
1.5	4	4	50	4	35°
2	6	4	50	4	35°
2.5	7	4	50	4	35°
3	8	4	50	4	35°
4	10	4	50	4	35°
5	13	5	50	4	35°
5	13	6	50	4	35°
6	15	6	50	4	35°
7	18	8	60	4	35°
8	20	8	60	4	35°
10	25	10	75	4	35°
12	30	12	75	4	35°
14	35	14	80	4	35°
14	45	14	100	4	35°
16	45	16	100	4	35°
18	45	18	100	4	35°
20	45	20	100	4	35°
Extended Length
Cut Dia (mm)	Cut Length (mm)	Shank Dia (mm)	Overall Length (mm)	Flutes	Helix Angle
D	Lc	d	L	Flutes	Helix Angle
4	16	4	75	4	35°
4	20	4	100	4	35°
5	20	5	75	4	35°
5	25	5	100	4	35°
6	20	6	75	4	35°
6	30	6	100	4	35°
6	40	6	150	4	35°
8	25	8	75	4	35°
8	35	8	100	4	35°
8	50	8	150	4	35°
10	40	10	100	4	35°
10	50	10	150	4	35°
12	45	12	100	4	35°
12	55	12	150	4	35°
14	60	14	150	4	35°
16	60	16	150	4	35°
18	60	18	150	4	35°
20	70	20	150	4	35°

Key Features:

✅ High-Performance Cutting – 4-flute design enhances chip evacuation and surface finish.
✅ TiAlSiN-X Coating – Superior wear and oxidation resistance for longer tool life.
✅ Square End Design – Ideal for slotting, profiling, and finishing applications.
✅ High Hardness & Heat Resistance – Ensures stability in high-speed machining.
✅ Precision Ground – Provides exceptional accuracy and consistency.

BABOS End Mill Catalog.pdf
