4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank

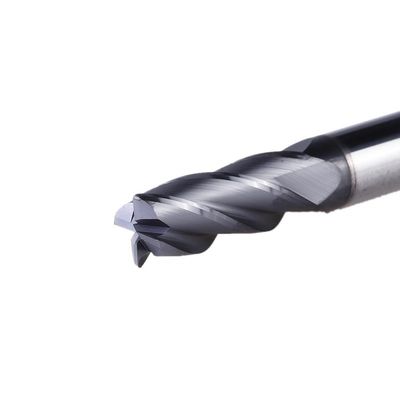

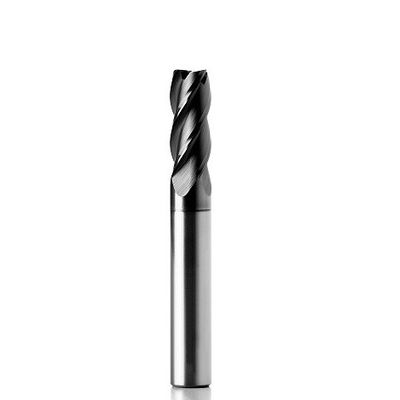

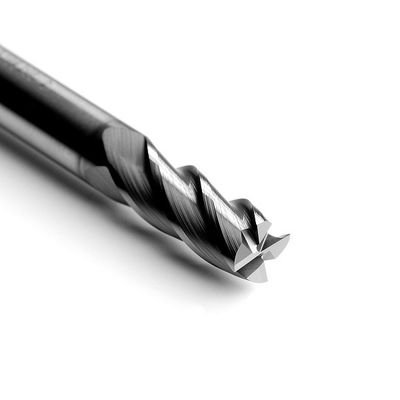

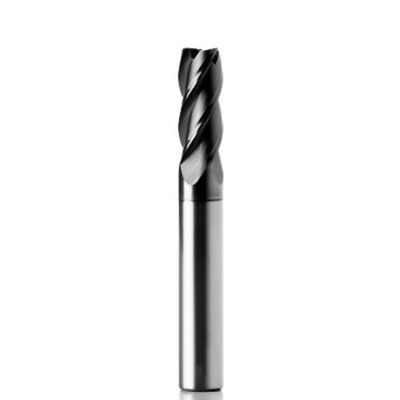

Large Image : 4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	BBS6008020080604F

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20,000PCS per month

Contact Now

Detailed Product Description

Helix Angle:	35 Degrees	Flute Number:	4
Coating/Finish Type:	AITiN	Shank Diameter:	8mm
Cut Length:	20mm	Cut Diameter:	8mm
Machine Type:	Finish Machining, Roughing Machining	Overall Length:	60mm
Highlight:	4 Flute Steel End Mill , high speed steel end mills 35 Degree , AITiSiN Coated end mills for steel

4 Flute 35 Degree Helix Angle AITiN Coated Speed Steel End Mill 8mm Shank

4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank 0

Product Description:

Featuring four flutes and a cut length of 20mm, our Carbide End Mill is designed to handle a variety of materials with ease. The end mill is made from tungsten carbide, providing the durability and reliability you need for even the toughest jobs.

Features:

Product Name: Carbide End Mill
Shank Diameter: 8mm
Coating/Finish Type: AITiN
Machine Type: Finish Machining, Roughing Machining
Overall Length: 60mm

Technical Parameters:

Machine Type	Finish Machining, Roughing Machining
Flute Number	4
Helix Angle	35 Degrees
Shank Diameter	8mm
Overall Length	60mm
Customize	Available
Sample Order	Accepted
Coating/Finish Type	AITiN

Applications:

The tool is versatile and can be used for a variety of purposes such as side milling, slot milling, step milling, drilling and more. This makes it a great tool to have in your arsenal for various machining needs.

Whether you need to create slots, drill precise holes, or complete some other machining task, this tool is up for the challenge. Its flexibility and reliability make it a great choice for machinists at all skill levels.

Products Specifications

HRC60 Carbide 4 Flutes Flat End Mill
Standard Length						Coating:AlTiN HRC 60°
Standard Length						Coating:AlTiN HRC 60°
Cut Dia. (mm)	Cut Length. (mm)	Shank Dia. (mm)	Overall Length. (mm)	Flutes	Helix Angle	Order No.
D	Lc	d	L	Flutes	Helix Angle	Order No.
3	8	3	50	4	35°	BBS6003008030504 F
1	3	4	50	4	35°	BBS6001003040504 F
1.5	4	4	50	4	35°	BBS6001504040504 F
2	6	4	50	4	35°	BBS6002006040504 F
2.5	7	4	50	4	35°	BBS6002507040504 F
3	8	4	50	4	35°	BBS6003008040504 F
4	10	4	50	4	35°	BBS6004010040504 F
5	13	5	50	4	35°	BBS6005013050504 F
5	13	6	50	4	35°	BBS6005013060504 F
6	15	6	50	4	35°	BBS6006015060504 F
7	18	8	60	4	35°	BBS6007018080604 F
8	20	8	60	4	35°	BBS6008020080604 F
10	25	10	75	4	35°	BBS6010025100754 F
12	30	12	75	4	35°	BBS6012030120754 F
14	35	14	80	4	35°	BBS6014035140804 F
14	45	14	100	4	35°	BBS6014045141004 F
16	45	16	100	4	35°	BBS6016045161004 F
18	45	18	100	4	35°	BBS6018045181004 F
20	45	20	100	4	35°	BBS6020045201004 F
Extended Length						HRC 60°
Cut Dia. (mm)	Cut Length. (mm)	Shank Dia. (mm)	Overall Length. (mm)	Flutes	Helix Angle	Order No.
D	Lc	d	L	Flutes	Helix Angle	Order No.
4	16	4	75	4	35°	BBS6004016040754 F
4	20	4	100	4	35°	BBS6004020041004 F
5	20	5	75	4	35°	BBS6005020050754 F
5	25	5	100	4	35°	BBS6005025051004 F
6	20	6	75	4	35°	BBS6006020060754 F
6	30	6	100	4	35°	BBS6006030061004 F
6	40	6	150	4	35°	BBS6006040061504 F
8	25	8	75	4	35°	BBS6008025080754 F
8	35	8	100	4	35°	BBS6008035081004 F
8	50	8	150	4	35°	BBS6008050081504 F
10	40	10	100	4	35°	BBS6010040101004 F
10	50	10	150	4	35°	BBS6010050101504 F
12	45	12	100	4	35°	BBS6012045121004 F
12	55	12	150	4	35°	BBS6012055121504 F
14	60	14	150	4	35°	BBS6014060141504 F
16	60	16	150	4	35°	BBS6016060161504 F
18	60	18	150	4	35°	BBS6018060181504 F
20	70	20	150	4	35°	BBS6020070201504 F

4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank 1
