SL-3 Taper Shape With Radius End Double Cut Burr With 1/4"Shank For Die Grinder Drill Bit

Name: SL-3 Taper Shape With Radius End Double Cut Burr With 1/4"Shank For Die Grinder Drill Bit
Brand: CHENGDU BABOS CUTTING TECH CO.,LTD
SKU: SL-3
Availability: InStock

Brand Name:	BABOS
Model Number:	SL-3
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Taper Shape With Radius End

Cut Diameter:

3/8 Inch

Cut Length:

1-1/16 Inch

Shank Diameter:

1/4 Inch

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

Radius End Double Cut Burr

1/4”Shank Double Cut Burr

Product Description

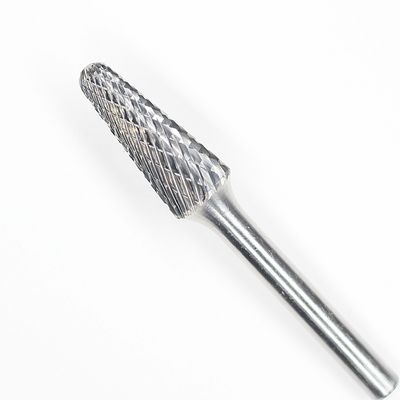

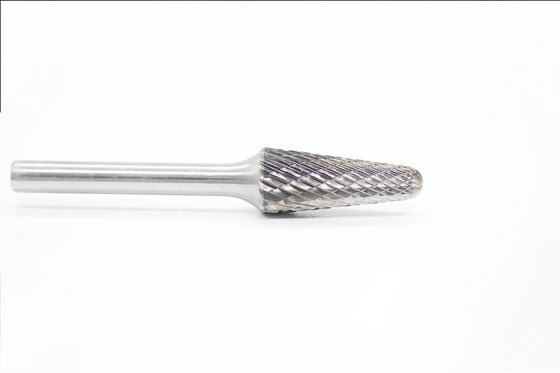

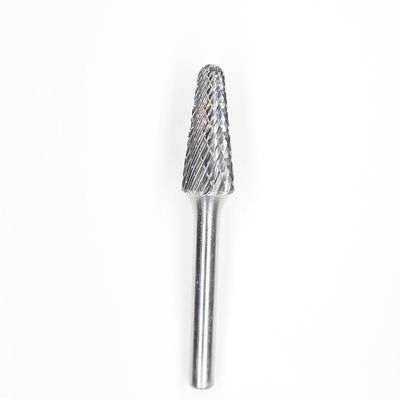

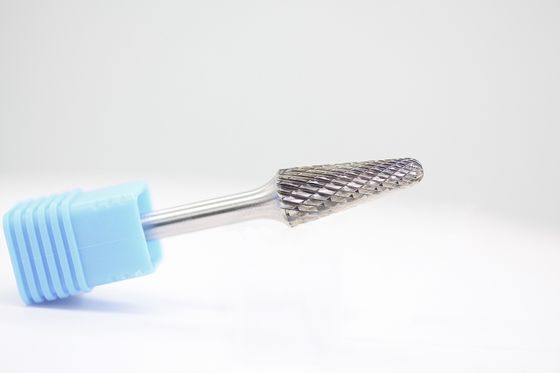

SL-3 Taper Shape With Radius End Double Cut Burr With 1/4"Shank For Die Grinder Drill Bit

Description:

The SL-3 tungsten carbide burr is a taper-shaped burr with a radius (rounded) end and a double-cut design. This burr is perfect for detailed cutting, grinding, deburring, and shaping tasks, especially in confined areas or on contoured surfaces. The tapered body and rounded end allow for precise control and versatility when working on various materials like metals, plastics, wood, and ceramics.

The SL-3 double-cut burr is commonly used in metalworking, woodworking, automotive, and aerospace industries for tasks requiring precision and efficiency. It fits well with die grinders or rotary tools and is ideal for professionals needing to work on various materials with speed and control.

SL-3 Taper Shape With Radius End Double Cut Burr

SL-3 Taper Shape With Radius End Double Cut Burr With 1/4"Shank For Die Grinder Drill Bit 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3/8"

Length of Flute: 2-15/16"

Shank Diameter: 1/4"

OAL: 3"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type L Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
3	3	13	38	8°	L0313	Solid
	5	13	38	10°	L0513	Brazed
	6	13	48	10°	L0613	Brazed
6	6	16	51	14°	L0616	Brazed
	8	22	70	14°	L08254	Brazed
	10	25	70	14°	L1025	Brazed
	12	28	73	14°	L1228	Brazed
	16	33	78	14°	L1633	Brazed
	19	38	83	14°	L1938	Brazed
8	12	28	73	14°	L1228	Brazed
	16	33	78	14°	L1633	Brazed
	19	38	83	14°	L1938	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
1/8''	1/8''	1/2''	1-1/2"	8°	SL-42	Solid
1/4''	1/4''	5/8"	2"	14°	SL-1	Brazed
	5/16"	7/8"	2-3/4"	14°	SL-2	Brazed
	1/2''	1-1/8"	3"	14°	SL-4	Brazed
	5/8''	1-5/16"	3-1/16"	14°	SL-5	Brazed
	5/8''	1-7/16"	3-1/5"	14°	SL-6	Brazed
	3/4''	1-5/8"	3-3/8"	14°	SL-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type L burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
