Shaping Cylindrical Burr Radius End 3/8" × 3/4" Tool Die Grinder Tungsten Carbide Bits

Large Image : Shaping Cylindrical Burr Radius End 3/8" × 3/4" Tool Die Grinder Tungsten Carbide Bits

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SC-3

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Ball Nosed Cylinder
Cut Diameter:	3/8 Inch	Cut Length:	3/4 Inch
Shank Diameter:	1/4 Inch	Overall Length:	2-1/2 Inch
Flute Type:	Standard Double Cut	Suitable For:	Machining Surface Profile Of Workpiece
Application:	Deburring, Shaping, And Finishing	Package Quantity:	1 Piece
Max Rpm:	50,000
Highlight:	Shaping cylindrical burr , cylindrical burr 3/8 inch , inch 3/4 die grinder tungsten carbide bits

Carbide Bur SC-3 Cylindrical Radius End 3/8" × 3/4" Tool Die Grinder Bit On 1/4″ Shank

Description:

The SC-3 cylindrical radius end carbide burr is a medium-sized tool in the SC series, featuring a cylindrical shape with a rounded end (radius end). This design makes it particularly effective for grinding, shaping, and contouring tasks where smooth transitions and rounded edges are needed. Like other SC burrs, it is constructed from tungsten carbide, which provides excellent durability and resistance to wear.

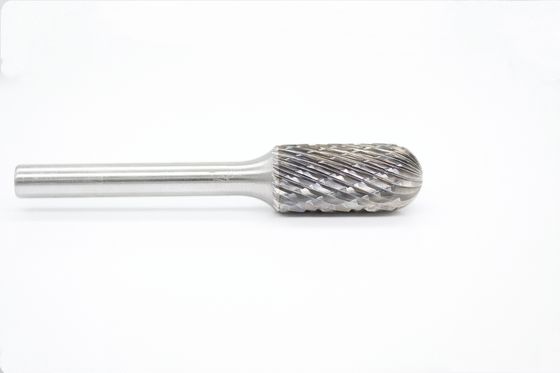

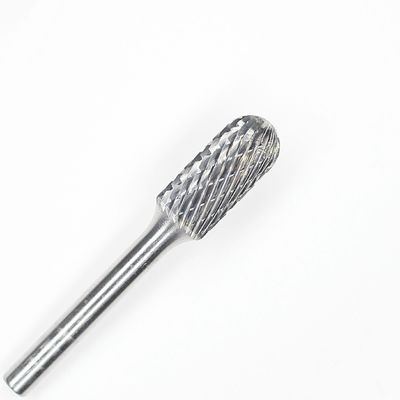

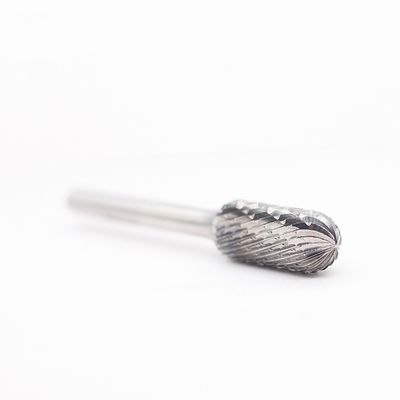

Carbide Bur SC-3 Cylindrical Radius End

Shaping Cylindrical Burr Radius End 3/8" × 3/4" Tool Die Grinder Tungsten Carbide Bits 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3/8"

Length of Flute: 3/4"

Shank Diameter: 1/4”

OAL: 2-1/2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type C Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	11	38	C0211	Solid
	2.5	11	38	C2511	Solid
	3	13	38	C0313	Solid
	5	13	38	C0513	Brazed
	6	13	45	C0613	Brazed
6	6	16	63	C0616	Brazed
	6	25	65	C0625	Solid
	8	20	65	C0820	Brazed
	10	20	70	C1020	Brazed
	11	25	70	C1125	Brazed
	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
8	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
Inch Standard
1/8''	1/8"	1/2"	1-1/2"	SC-42	Solid
1/8''	1/4"	1/2"	2"	SC-51	Brazed
1/4''	3/16"	9/32"	2''	SC-14	Solid
	1/4"	5/8"	2''	SC-1	Solid
	1/4"	1"	2''	SC-1L	Solid
	5/16"	3/4''	2-1/2"	SC-2	Brazed
	7/16"	1"	2-3/4"	SC-4	Brazed
	1/2"	1"	2-3/4"	SC-5	Brazed
	5/8"	1"	2-3/4"	SC-6	Brazed
	3/4"	1"	2-3/4"	SC-7	Brazed
	7/8"	1"	2-3/4"	SC-8	Brazed
3/8''	1"	1"	2-3/4"	SC-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type C burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
