SB-5 Cylindrical End Cut Carbide Burrs 1/2" Cut Dia 1/4" Shank Dia Carbide Rotary Files

Large Image : SB-5 Cylindrical End Cut Carbide Burrs 1/2" Cut Dia 1/4" Shank Dia Carbide Rotary Files

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SB-5

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Cylinder With End Cut
Cut Diameter:	1/2 Inch	Cut Length:	1 Inch
Shank Diameter:	1/4 Inch	Overall Length:	2-3/4inch
Flute Type:	Standard Double Cut	Suitable For:	Machining Surface Profile Of Workpiece
Application:	Deburring, Shaping, And Finishing	Package Quantity:	1 Piece
Max Rpm:	50,000
Highlight:	1/2” Cut Dia Carbide Burrs

SB-5 Cylindrical End Cut Carbide Burrs 1/2" Cut Dia 1/4" Shank Dia Carbide Rotary Files

Description:

The SB-5 burr is suitable for large-scale jobs where both precision and significant material removal are required. It works well in applications like weld cleaning, smoothing rough surfaces, and preparing materials for further processing, typically used with die grinders or high-speed rotary tools.

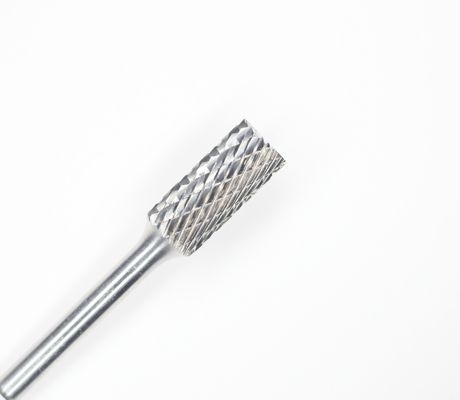

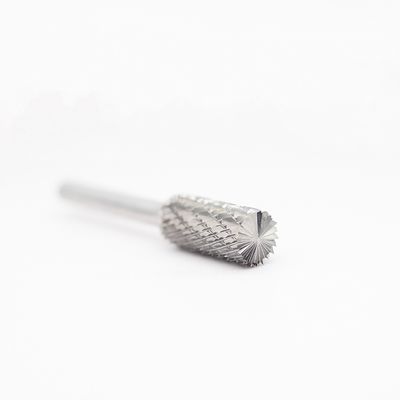

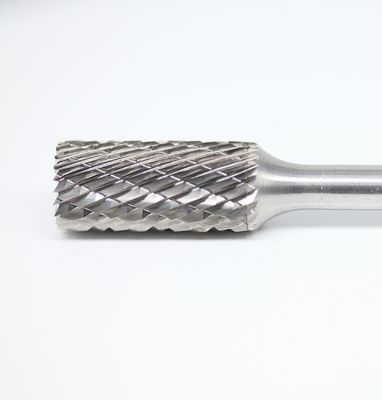

SB-5 Cylinder With End Cut Burrs On 1/4" Shank

SB-5 Cylindrical End Cut Carbide Burrs 1/2" Cut Dia 1/4" Shank Dia Carbide Rotary Files 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/2"

Length of Flute: 1"

Shank Diameter: 1/4”

OAL: 2-3/4"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type B Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Legth of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	1.5	6	38	B1506	Solid
	2	11	38	B0211	Solid
	2.5	12	38	B2512	Solid
	3	13	38	B0313	Solid
	4	13	51	B0413	Brazed
	5	13	51	B0513	Brazed
	6	13	51	B0613	Brazed
6	6	16	63	B0616	Brazed
	6	25	65	B0625	Solid
	8	20	65	B0820	Brazed
	10	20	70	B1020	Brazed
	11	25	70	B1125	Brazed
	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
8	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
Inch Standard
3/8''	7/8"	1"	2-3/4"	SB-8	Brazed
1/8''	1/16"	1/4"	1-1/2"	SB-41	Solid
1/8''	1/8"	9/16"	1-1/2"	SB-43	Solid
1/4''	5/32"	5/8"	2"	SB-13	Solid
	3/16"	5/8"	2''	SB-14	Solid
	1/4"	5/8"	2''	SB-1	Solid
	1/4"	1"	2''	SB-1L	Solid
	5/16"	3/4''	2-1/2"	SB-2	Brazed
	3/8"	3/4''	2-1/2"	SB-3	Brazed
	7/16"	1"	2-3/4"	SB-4	Brazed
	5/8"	1"	2-3/4"	SB-6	Brazed
	3/4"	1"	2-3/4"	SB-7	Brazed
	1"	1"	2-3/4"	SB-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type B burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
