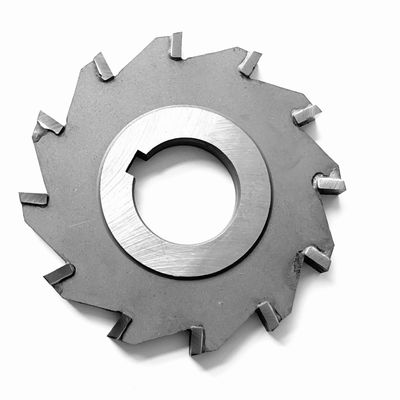

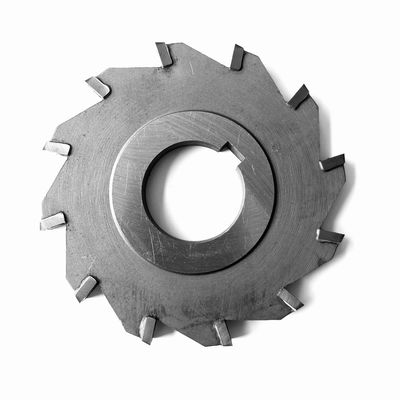

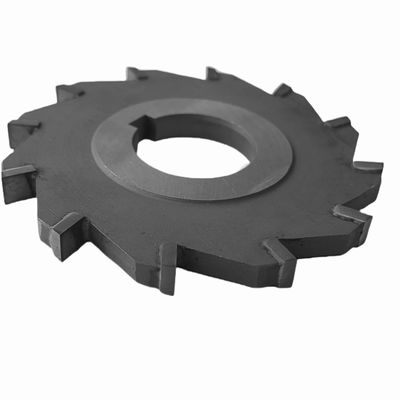

100 × 8×32mm Arbor Hole Side Milling Cutter 12 Tooth Carbide Tipped Circular Saw Blade Cutter

100mm Dia×8mm×32mm Arbor Hole Carbide Tipped Straight Tooth Side Milling Cutter For Steel 12 Teeth

♦ Product Specification:

Product name: Side Milling Cutter

Material:Hard Alloy

Number of teeth:12

Thickness:8mm

Arbor Hole Dia:32mm

Tolerance: ±0.05

Compatible Material: Wood, Plastic, Metal, Copper

♦ Application:

Tungsten carbide side and face mill, it is also called face mill,end mill,disc mill,tungsten carbide milling cutter, suitable for cutting right-angle corners or grooves,can also be used for cutting the corners of forged parts, please use with cutting fluid.

♦ Advantage:

1, Offer long life and faster cutting speed, low friction coefficient, good wear resistance.

2, Our dimensional tolerance control is very strict.

3, Spot supplies of commonly used type.

4. Different grades of carbide welding blades are available, like: YG,YW,YT, etc.

♦ Tips:

In the case of heavy machining or high-speed cutting, a keyway should be set, also when the outer diameter is greater than 100mm, a keyway should also be set to increase the stability of the tool body and gripper.

♦ Customization:

With carbide welding blade, according to different processing materials, can be customized with different grades of carbide blade. We provided a wide variety of models and sizes (Metric and Inch) in accordance with customers' drawings.
