| Brand Name: | BABOS |
| Model Number: | B0304X03-50 |
| MOQ: | 20pcs |
| Price: | Negotiable |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 10,0000pcs per month |

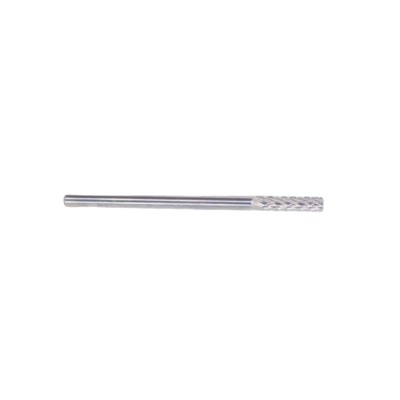

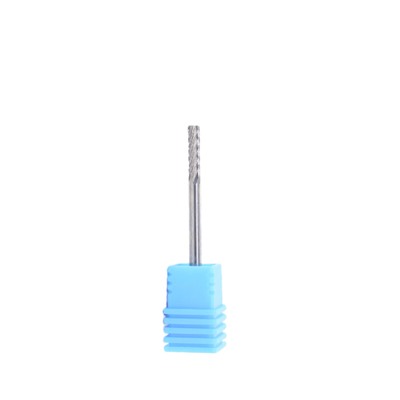

The BABOS B0313X03-50 is a B Shape cylindrical end cut solid carbide burr designed for precision metal removal, deburring, contouring, and surface finishing. Manufactured from tungsten carbide, this rotary burr features a cylindrical head with end-cutting teeth and a standard double cut flute design.
![]()
The cylindrical end cut geometry allows the tool to machine both its side surface and end face, making it suitable for working on profiles, edges, grooves, recessed areas, and intersecting surfaces.
Its standard double cut tooth pattern helps break chips into smaller pieces, providing controlled material removal and smoother operation in general metalworking applications.
With a 3mm cutting diameter, 3mm shank diameter, and 50mm overall length, this compact carbide burr is suitable for precision machining and detailed finishing work.
Key Features & Benefits
Solid Tungsten Carbide Construction: Provides high hardness, wear resistance, and reliable cutting performance for demanding metalworking applications.
B Shape Cylindrical Design: Features a flat cylindrical head with end-cutting teeth for machining side surfaces, end faces, and internal corners.
Standard Double Cut Flutes: Cross-cut tooth geometry helps produce smaller chips and provides controlled material removal.
Precision Metalworking: Suitable for deburring, weld seam removal, edge preparation, contouring, and surface finishing.
Compact 3mm Cutting Head: Ideal for detailed machining and working in relatively narrow or confined areas.
Custom Manufacturing Available: Different head diameters, cutting lengths, shank sizes, overall lengths, and cutting patterns can be supplied upon request.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | BABOS |
| Product Type | Solid Carbide Rotary Burr |
| Model Number | B0313X03-50 |
| Burr Shape | B Shape – Cylindrical With End Cut |
| Material | Tungsten Carbide |
| Cutting Diameter | 3mm |
| Cutting Length | 13mm |
| Shank Diameter | 3mm |
| Overall Length | 50mm |
| Cutting Style | Standard Double Cut |
| Package Quantity | 1 Piece |
| Packaging | Plastic Box |
| Maximum Listed RPM | 50,000 RPM |
B Shape Cylindrical End Cut Carbide Burr Design
The B Shape carbide burr belongs to the cylindrical end cut rotary burr family. Unlike a cylindrical burr without end cut, this design incorporates cutting teeth on the bottom face of the burr.
This additional end-cutting capability makes the tool suitable for machining applications where both the cylindrical side and the bottom face need to remove material.
Typical machining applications include:
Machining intersecting surfaces and right-angle profiles.
Deburring edges and internal corners.
Removing excess material from metal components.
Contouring and shaping workpiece surfaces.
Grinding and finishing recessed areas and grooves.
The B Shape design is particularly useful when a flat cylindrical cutting head is required for both side cutting and end-face machining.
Standard Double Cut vs. Single Cut Carbide Burr
Choosing the correct flute design is important for achieving the desired cutting performance and surface finish.
1.Standard Double Cut
The double cut carbide burr features intersecting flute patterns that divide material into smaller chips. It is widely used for general-purpose metal removal, deburring, shaping, and finishing.
Key advantages:
Smaller chip formation.
Controlled material removal.
Good balance between cutting efficiency and surface finish.
Suitable for a wide range of general metalworking applications.
2.Single Cut
Single cut carbide burrs feature one-directional cutting flutes. They are commonly selected for more aggressive cutting and faster material removal in suitable applications.
The choice between single cut and double cut depends on the workpiece material, machining requirements, operator preference, and desired surface finish.
Applications of B Shape Double Cut Carbide Burrs
BABOS B Shape cylindrical end cut carbide burrs can be used in various metalworking and industrial applications.
1. Metal Deburring
Remove burrs, sharp edges, and excess material from machined or cut metal components.
2. Mold and Die Manufacturing
Perform precision material removal, contour correction, and surface preparation during mold and die manufacturing.
3. Weld Seam Grinding
Help remove excess weld material and smooth weld areas before subsequent finishing operations.
4. Surface Contouring
Machine profiles, grooves, edges, and intersecting surfaces on metal workpieces.
5. Precision Metal Fabrication
Support detailed grinding, shaping, and finishing operations in metal fabrication workshops.
Compatible Materials
Depending on carbide grade, flute geometry, and machining conditions, carbide burrs can be used on:
Carbon steel
Alloy steel
Stainless steel
Cast iron
Copper and copper alloys
Other suitable metal materials
For aluminum and other soft non-ferrous metals, an aluminum cut carbide burr is generally recommended to help reduce chip loading.
How to Choose the Right Carbide Burr
When selecting a carbide burr, consider the following factors:
Burr Shape: Choose B Shape cylindrical end cut for flat cylindrical cutting surfaces and end-face machining.
Cutting Diameter: Select the appropriate head diameter according to the working area and required material removal.
Cutting Length: Choose a cutting length that provides sufficient working depth without unnecessary interference.
Shank Diameter: Make sure the shank is compatible with your die grinder or rotary tool collet.
Cut Type: Select standard double cut for general metalworking or other flute designs according to the workpiece material and cutting requirements.
Operating Speed: Follow the recommended speed range for the burr diameter, material, and equipment. Do not exceed the manufacturer's maximum rated RPM.
Why Choose BABOS Carbide Burrs?
BABOS specializes in the manufacturing and supply of tungsten carbide rotary burrs and other industrial cutting tools.
We provide a range of carbide burr solutions for industrial distributors, wholesalers, tool brands, and professional metalworking users.
Our manufacturing and supply capabilities include:
Multiple standard carbide burr shapes and sizes.
Standard double cut, single cut, aluminum cut, and other flute options.
Solid carbide and brazed carbide burr configurations.
Customized dimensions and cutting specifications.
OEM and private-label manufacturing services.
Plastic box and customized packaging options.
Bulk orders for international distributors and industrial customers.
Whether you need standard B Shape carbide burrs or customized rotary burr specifications, BABOS can help you find a suitable solution for your market.
Frequently Asked Questions
What is a B Shape carbide burr?
A B Shape carbide burr is a cylindrical rotary burr with end-cutting teeth. It can remove material from both the cylindrical side and the bottom face, making it suitable for deburring, contouring, and machining intersecting surfaces.
What is the difference between B Shape and A Shape carbide burrs?
The main difference is the cutting geometry at the end of the burr. A Shape cylindrical burr has no end-cutting teeth, while B Shape cylindrical burrs have cutting teeth on the bottom face for additional end-face machining capability.
What is the advantage of a double cut carbide burr?
Double cut carbide burrs feature intersecting cutting flutes that help produce smaller chips and provide controlled material removal. They are widely used for general deburring, grinding, shaping, and finishing.
What materials can this carbide burr machine?
Depending on the carbide grade and cutting conditions, it can be used on carbon steel, alloy steel, stainless steel, cast iron, and other suitable metals. For aluminum, an aluminum-specific cutting pattern is generally recommended.
What machines are compatible with this carbide burr?
It is designed for compatible rotary tools, pneumatic die grinders, and electric die grinders equipped with a suitable collet for the 3mm shank.
Can BABOS customize carbide burr sizes?
Yes. BABOS can discuss customized cutting diameters, cutting lengths, shank diameters, overall lengths, flute designs, and packaging according to your requirements.
What is the MOQ for this carbide burr?
No MOQ, and small mixed orders welcome. Please contact our sales team for bulk pricing and customized order requirements.
![]()
SA: Cylindrical (Without End Cut)
SB: Cylindrical With End Cut
SC: Cylindrical Ball Nose(Cylindrical Radius End)
SD: Ball Shape
SE: Oval Shape
SF: Tree RadiusShape
SG: Tree Point Shape
SH: Flame Shape
SJ: 60-degree countersink
SK: 90-degree countersink
SL: Ball Nosed Cone Shape(Taper Radius End)
SM: Cone Shape
SN: Inverted Cone Shape
Other Available Sizes Related to Type B Cylindrical End Cut Both in Metric and Inch Standard:
| Metric Standard | |||||
| Shank Dia. (mm) | Cutter Dia. (mm) | Legth of Cut (mm) | Overall Length (mm) | Tool No. | The Combination of Head and Shank |
| d2 | d1 | l2 | l1 | ||
| 3 | 1.5 | 6 | 38 | B1506 | Solid |
| 2 | 11 | 38 | B0211 | Solid | |
| 2.5 | 12 | 38 | B2512 | Solid | |
| 3 | 13 | 38 | B0313 | Solid | |
| 4 | 13 | 51 | B0413 | Brazed | |
| 5 | 13 | 51 | B0513 | Brazed | |
| 6 | 13 | 51 | B0613 | Brazed | |
| 6 | 6 | 16 | 63 | B0616 | Brazed |
| 6 | 25 | 65 | B0625 | Solid | |
| 8 | 20 | 65 | B0820 | Brazed | |
| 10 | 20 | 70 | B1020 | Brazed | |
| 11 | 25 | 70 | B1125 | Brazed | |
| 12 | 25 | 70 | B1225 | Brazed | |
| 16 | 25 | 70 | B1625 | Brazed | |
| 19 | 25 | 70 | B1925 | Brazed | |
| 25 | 25 | 70 | B2525 | Brazed | |
| 8 | 12 | 25 | 70 | B1225 | Brazed |
| 16 | 25 | 70 | B1625 | Brazed | |
| 19 | 25 | 70 | B1925 | Brazed | |
| 25 | 25 | 70 | B2525 | Brazed | |
| Inch Standard | |||||
| 3/8'' | 7/8" | 1" | 2-3/4" | SB-8 | Brazed |
| 1/8'' | 1/16" | 1/4" | 1-1/2" | SB-41 | Solid |
| 1/8" | 9/16" | 1-1/2" | SB-43 | Solid | |
| 1/4'' | 5/32" | 5/8" | 2" | SB-13 | Solid |
| 3/16" | 5/8" | 2'' | SB-14 | Solid | |
| 1/4" | 5/8" | 2'' | SB-1 | Solid | |
| 1/4" | 1" | 2'' | SB-1L | Solid | |
| 3/8" | 3/4'' | 2-1/2" | SB-3 | Brazed | |
| 7/16" | 1" | 2-3/4" | SB-4 | Brazed | |
| 1/2" | 1" | 2-3/4" | SB-5 | Brazed | |
| 5/8" | 1" | 2-3/4" | SB-6 | Brazed | |
| 3/4" | 1" | 2-3/4" | SB-7 | Brazed | |
| 1" | 1" | 2-3/4" | SB-9 | Brazed | |
Customization:
Cut Selection Guide:
| STANDARD CUT(M) |
STANDARD DOUBLE CUT (X) |
WIDE CUT (C) |
FINE CUT (F) |
ALUMINUM CUT(W) |
DIAMOND CUT(D) |
