SC Cylindrical Radius Carbide Burrs 10mm*20mm With 6mm Shank Standard Double Cut

SC Cylindrical Radius Carbide Burrs 10mm*20mm With 6mm Shank Standard Double Cut

Brand Name:	BABOS
Model Number:	C1020C06
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Cylindrical Radius

Cut Diameter:

10mm

Cut Length:

20mm

Shank Diameter:

6mm

Overall Length:

65mm

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

1 Piece

Max Rpm:

50,000

Packaging Details:

Plastic Box

Product Description

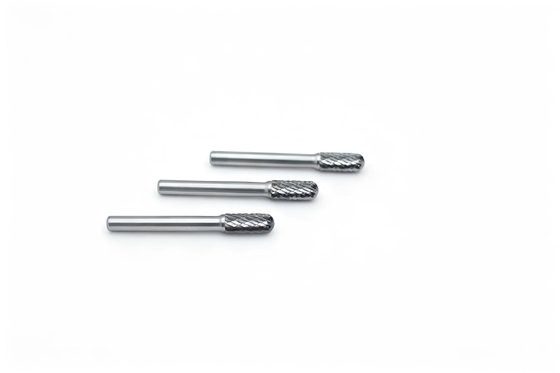

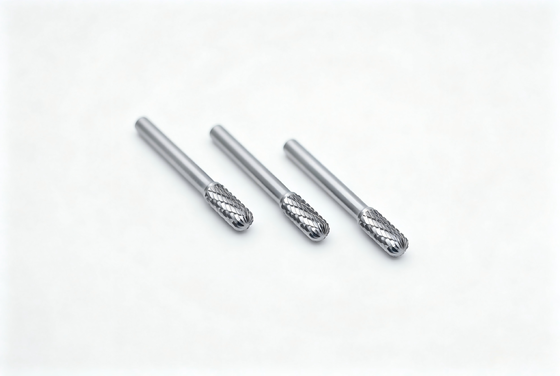

SC Cylindrical Radius Carbide Burrs 10mm*20mm With 6mm Shank Standard Double Cut

Description:

The SC Cylindrical Radius Carbide Burr is designed for high-performance metal machining and deburring applications. Manufactured from premium tungsten carbide, it offers excellent hardness, durability, and cutting efficiency. The 10mm diameter head with 20mm cutting length provides superior material removal, while the 6mm shank ensures stable tool holding during high-speed grinding. The double cut flute design delivers smoother operation, reduced vibration, and finer surface finishing.

This burr is ideal for use on a wide range of materials including steel, stainless steel, carbon steel, cast iron, aluminum, and non-ferrous metals. Widely used in mold processing, metal fabrication, tool manufacturing, welding, and automotive applications.

SC Cylindrical Radius Carbide Burrs 10mm*20mm With 6mm Shank Standard Double Cut 0

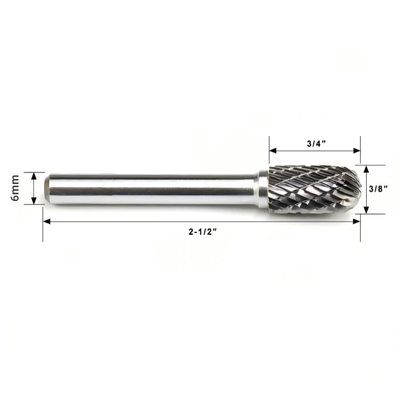

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:10mm

Length of Flute: 20mm

Shank Diameter: 6mm

OAL:65mm

Cut Type: Standard Double Cut

Other Available Sizes Related to Type C Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	11	38	C0211	Solid
	2.5	11	38	C2511	Solid
	3	13	38	C0313	Solid
	5	13	38	C0513	Brazed
	6	13	45	C0613	Brazed
6	6	16	63	C0616	Brazed
	6	25	65	C0625	Solid
	8	20	65	C0820	Brazed
	10	20	65	C1020	Brazed
	11	25	70	C1125	Brazed
	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
8	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
Inch Standard
1/8''	1/8"	1/2"	1-1/2"	SC-42	Solid
1/8''	1/4"	1/2"	2"	SC-51	Brazed
1/4"	3/16"	9/32"	2''	SC-14	Solid
	1/4"	1"	2''	SC-1L	Solid
	5/16"	3/4''	2-1/2"	SC-2	Brazed
	3/8"	3/4''	2-1/2"	SC-3	Brazed
	7/16"	1"	2-3/4"	SC-4	Brazed
	1/2"	1"	2-3/4"	SC-5	Brazed
	5/8"	1"	2-3/4"	SC-6	Brazed
	3/4"	1"	2-3/4"	SC-7	Brazed
	7/8"	1"	2-3/4"	SC-8	Brazed
3/8''	1"	1"	2-3/4"	SC-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type C burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
