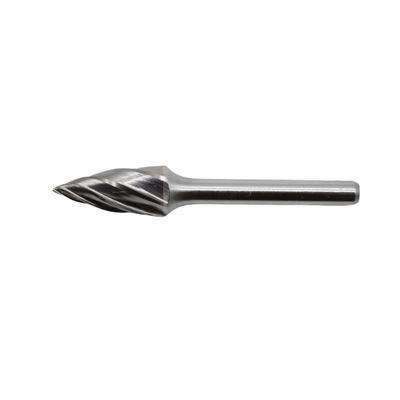

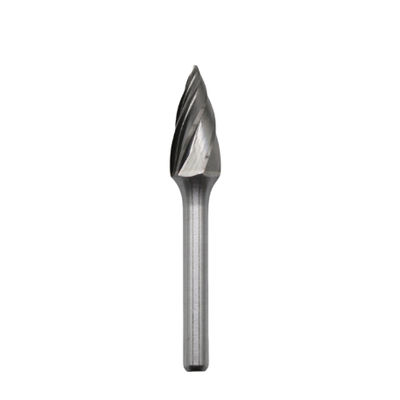

G shape Carbide Burr 10mm*20mm Pointed Tree Carbide Burr On 6mm Shank Aluminum Cut

G shape Carbide Burr 10mm*20mm Pointed Tree Carbide Burr On 6mm Shank Aluminum Cut

Brand Name:	BABOS
Model Number:	G-Pointed Tree
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Tree Pointed

Cut Diameter:

10mm

Cut Length:

20mm

Shank Diameter:

6mm

Flute Type:

Aluminum Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

Max Rpm:

50,000

Packaging Details:

Plastic Box

Product Description

G shape Carbide Burr 10mm*20mm Pointed Tree Carbide Burr On 6mm Shank Aluminum Cut

The G Shape Pointed Tree Carbide Burr with its 10mm x 20mm dimensions, 6mm shank, and aluminum-specific cut is a high-performance, precision tool. It excels at aggressive material removal and intricate shaping on soft, non-ferrous materials, providing efficient, clog-free operation and a clean finish, particularly in hard-to-reach areas requiring a pointed tip.

Specifications:

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:10mm

Length of Flute: 20mm

Shank Diameter: 6mm

OAL: 65mm

Cut Type: Aluminum Cut

Other Available Sizes Related to Type G Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	13	38	G0313	Solid
	5	13	51	G0513	Brazed
	6	13	51	G0613	Brazed
6	6	18	63	G0618	Brazed
	8	20	65	G0820	Brazed
	10	20	65	G1020	Brazed
	12	25	70	G1225	Brazed
	16	25	70	G1625	Brazed
	19	25	70	G1925	Brazed
8	12	25	70	G1225	Brazed
	16	25	70	G1625	Brazed
	19	25	70	G1925	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
1/8''	1/8"	1/2"	1-1/2"	SG-44	Solid
1/4''	1/4"	5/8"	2"	SG-1	Brazed
	5/16"	3/4''	2-1/2"	SG-2	Brazed
	3/8"	3/4''	2-1/2"	SG-3	Brazed
	1/2"	1	2-3/4"	SG-5	Brazed
	5/8"	1	2-3/4"	SG-6	Brazed
	3/4"	1	2-3/4"	SG-7	Brazed
	3/4"	1-1/2"	3-1/4"	SG-15	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type G burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
