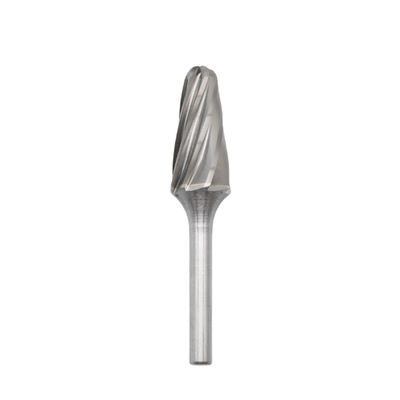

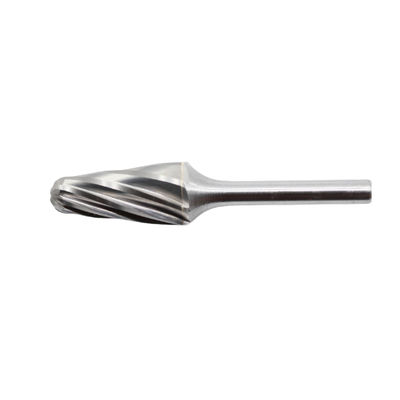

F Tree Radius End Tungsten Carbide Burr 16mm*25mm Aluminum Cut Die Grinder Deburring Bits

F Tree Radius End Tungsten Carbide Burr 16mm*25mm Aluminum Cut Die Grinder Deburring Bits

Brand Name:	BABOS
Model Number:	F-Tree Radius End
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

BABOS CARBIDE BURR CATALOGU...UE.pdf

Material:

Tungsten Carbide

Shape:

Ball Nosed Tree

Cut Diameter:

16mm

Cut Length:

25mm

Shank Diameter:

6mm

Flute Type:

Aluminum Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

Max Rpm:

50,000

Packaging Details:

Plastic Box

Product Description

F Tree Radius End Tungsten Carbide Burr 16mm*25mm Aluminum Cut Die Grinder Deburring Bits

Description:

The F Tree Radius End Tungsten Carbide Burr with its 16mm x 25mm dimensions, aluminum-specific cut, and 6mm shank is a robust and precise tool, expertly crafted for high-performance deburring, shaping, and material removal on soft and gummy non-ferrous metals, ensuring efficiency and a clean finish without the common problem of clogging.

Specifications:

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:16mm

Length of Flute: 25mm

Shank Diameter: 6mm

OAL: 70mm

Cut Type: Aluminum Cut

Other Available Sizes Related to Type F Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length. (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	13	38	F0313	Solid
	5	13	51	F0513	Brazed
	6	13	51	F0613	Brazed
6	6	18	63	F0618	Brazed
	8	20	65	F0820	Brazed
	10	20	65	F1020	Brazed
	11	25	70	F1125	Brazed
	12	25	70	F1225	Brazed
	16	25	70	F1625	Brazed
	19	25	70	F1925	Brazed
8	12	25	70	F1225	Brazed
	16	25	70	F1625	Brazed
	19	25	70	F1925	Brazed
Inch Standard
1/8''	1/8''	1/2''	1/2''	SF-42	Solid
1/8''	1/4''	1/2''	2''	SF-51	Brazed
1/4''	3/8''	3/4''	1/2''	SF-3	Brazed
	7/16''	1''	3/4''	SF-4	Brazed
	1/2''	3/4''	1/2''	SF-13	Brazed
	5/8''	1''	3/4''	SF-6	Brazed
	3/4''	1''	3/4''	SF-7	Brazed
	3/4''	1/4''	3''	SF-14	Brazed
3/8''	3/4''	1/4''	1/4''	SF-15	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type F burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
