SC Single Cut Ball Nosed Cylinder Carbide Burr 8mm*20mm With 6mm Shank Dia.

Large Image : SC Single Cut Ball Nosed Cylinder Carbide Burr 8mm*20mm With 6mm Shank Dia.

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	C0820C06

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Ball Nosed Cylinder
Cut Diameter:	8mm	Cut Length:	20mm
Shank Diameter:	6mm	Overall Length:	65mm
Flute Type:	Single Cut	Suitable For:	Machining Surface Profile Of Workpiece
Application:	Deburring, Shaping, And Finishing	Package Quantity:	1 Piece
Max Rpm:	50,000
Highlight:	8mm*20mm Cylinder Carbide Burr , SC Cylinder Carbide Burr , 6mm Shank Dia Cylinder Carbide Burr

SC Single Cut Ball Nosed Cylinder Carbide Burr 8mm*20mm With 6mm Shank Dia.

Description:

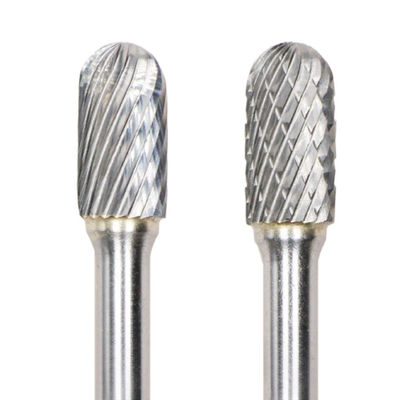

The SC ball nosed cylinder carbide burr, featuring a cylindrical shape with a rounded end (radius end). This design is ideal for smoothing, contouring, and shaping tasks, providing both precision and versatility. Like other carbide burrs, the SC is constructed from tungsten carbide, which ensures excellent durability and performance.

The SC carbide burr is widely used in industries like automotive, aerospace, metalworking, and manufacturing, where detailed grinding and shaping are required. It works well for cleaning welds, smoothing sharp edges, and creating rounded contours in hard-to-reach areas. Typically, it is used with die grinders or rotary tools for optimal performance.

SC carbide Burr 8mm*20mm With 6mm Shank Dia.

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:8mm

Length of Flute: 20mm

Shank Diameter: 6mm

OAL:65mm

Cut Type: Single Cut

Other Available Sizes Related to Type C Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	11	38	C0211	Solid
	2.5	11	38	C2511	Solid
	3	13	38	C0313	Solid
	5	13	38	C0513	Brazed
	6	13	45	C0613	Brazed
6	6	16	63	C0616	Brazed
	6	25	65	C0625	Solid
	8	20	65	C0820	Brazed
	10	20	70	C1020	Brazed
	11	25	70	C1125	Brazed
	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
8	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
Inch Standard
1/8''	1/8"	1/2"	1-1/2"	SC-42	Solid
1/8''	1/4"	1/2"	2"	SC-51	Brazed
1/4"	3/16"	9/32"	2''	SC-14	Solid
	1/4"	1"	2''	SC-1L	Solid
	5/16"	3/4''	2-1/2"	SC-2	Brazed
	3/8"	3/4''	2-1/2"	SC-3	Brazed
	7/16"	1"	2-3/4"	SC-4	Brazed
	1/2"	1"	2-3/4"	SC-5	Brazed
	5/8"	1"	2-3/4"	SC-6	Brazed
	3/4"	1"	2-3/4"	SC-7	Brazed
	7/8"	1"	2-3/4"	SC-8	Brazed
3/8''	1"	1"	2-3/4"	SC-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type C burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
