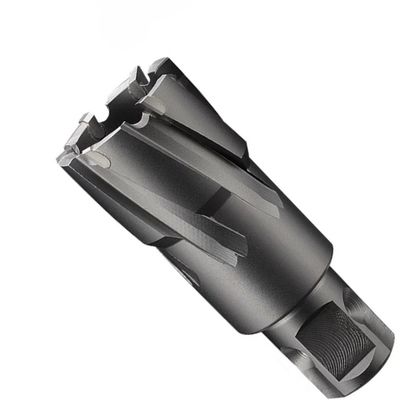

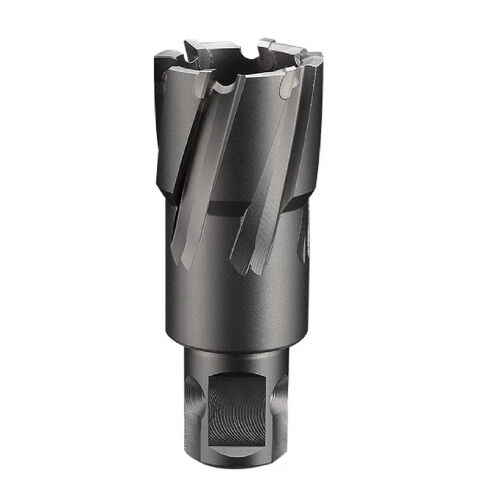

OEM 35mm Cutting Depth TCT Annular Cutter 19.05mm Universal Shank Carbide Annular Cutter
Product Description:
The Carbide Tipped Annular Cutter represents the epitome of advanced drilling technology. It is designed specifically for fast and precise large-hole drilling in steel, with a diameter of 25mm and a cutting depth of 35mm.
One of the key features of this cutting tool is its carbide-tipped design, which ensures longevity and efficient cutting. This means that even when drilling through rusted or corroded materials, the Carbide Tipped Annular Cutter will still be able to maintain its performance.
In order to achieve superior strength, durability and wear resistance, premium carbide is brazed onto the cutter. This results in a high-quality tool that is optimized for a long lifespan and outstanding performance.
Features:
- Product Name: TCT Annular Cutter
- Shank Type: Universal Shank
- Suitable for: Steel, Stainless Steel, Cast Iron, Aluminum
- Application: Metal Drilling
- Service: OEM
- Package Contains: 1 TCT Annular Cutter Hole Saw Drill Bit Metal Hole Cutter
Technical Parameters:
| Product |
TCT Annular Cutter |
| Compatibility |
Fits Most Magnetic Drilling Machines |
| Material |
Tungsten Carbide Tipped |
| Cutting Diameter |
25mm |
| Cutting Depth |
35mm |
| Shank Diameter |
19.05mm |
| Shank Type |
Universal Shank |
| Package Contain |
1 |
| Service |
OEM |
| Application |
Metal Drilling |
| Suitable For |
Steel, Stainless Steel, Cast Iron, Aluminum |
Applications:
The cutter is an exceptional tool that can help you achieve precise and sharp holes with ease. Its efficient design guarantees bur-free holes, which significantly improves the overall cutting performance.
One of the unique features of this cutter is that it enables you to drill overlapping holes, slotting holes, and edge cuts without the need for reaming. This is made possible by the precision pilot pins that eject steel plugs. Additionally, using a lubricant will enhance its performance further.
If you routinely work with hard-to-cut steel materials such as titanium, stainless steel, hardened steel, and rail steel, this cutter can make your job much more manageable. It ensures smooth and easy cutting through even the most challenging materials, giving you reliable results time and time again.
Product Specifications:
Cutter Diameter
(mm) |
Cutting Depth
(mm) |
Shank Diameter
(mm) |
Cutter Diameter
(mm) |
Cutting Depth
(mm) |
Shank Diameter
(mm) |
|
| 12-21 |
35/50 |
Weldon Shank(19.05)
Universal Shank(19.05)
FEIN Quick-In Shank(18)
|
14-20 |
75/100 |
Weldon Shank(19.05)
Universal Shank(19.05)
FEIN Quick-In Shank(18)
|
| 22-25 |
21-25 |
| 26-29 |
26-30 |
| 30-35 |
31-35 |
| 36-42 |
36-40 |
| 43-50 |
41-45 |
| 51-53 |
46-50 |
| 54-55 |
51-55 |
| 56-60 |
56-60 |
| 61-65 |
61-65 |
| 66-70 |
66-70 |
| 71-75 |
71-75 |
| 76-80 |
76-80 |
| 81-85 |
81-85 |
| 86-90 |
86-90 |
| 91-95 |
91-95 |
| 96-100 |
96-100 |
*Please contact us if you are looking for the special non-standard TCT annular cutters. We can design and make special non-standard TCT annular cutters according to client's drawings.
Shank Selection Guide
| Weldon shank |
Universal Shank |
FEIN Quick-In Shank |
 |
|
|
