SL-1 Tungsten Carbide Burr Double Cut For Die Grinder 1/4" X 5/8" With 2" Overall Length

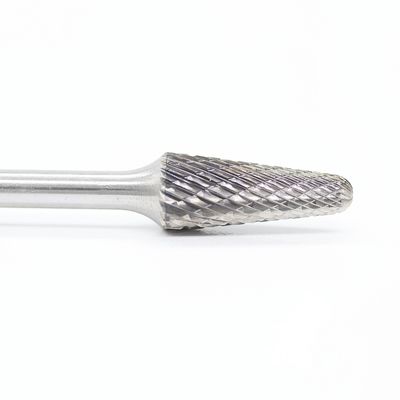

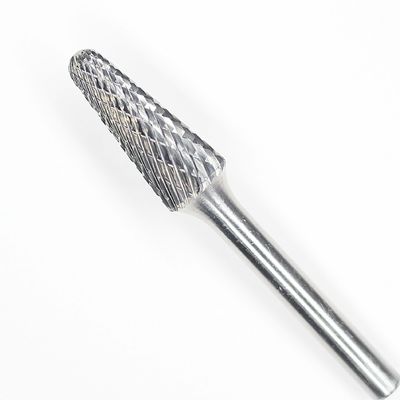

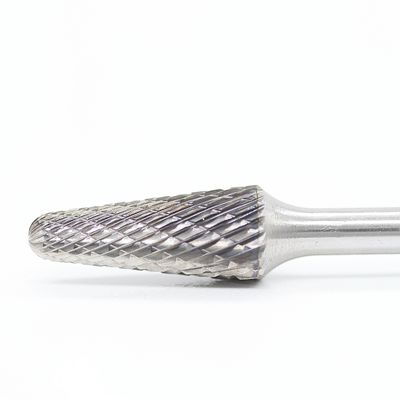

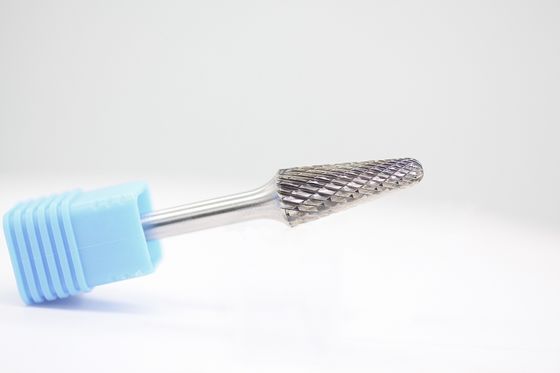

Large Image : SL-1 Tungsten Carbide Burr Double Cut For Die Grinder 1/4" X 5/8" With 2" Overall Length

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SL-1

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Taper Shape With Radius End
Cut Diameter:	1/4 Inch	Cut Length:	5/8 Inch
Shank Diameter:	1/4 Inch	Flute Type:	Standard Double Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1	Max Rpm:	50,000
Highlight:	1/4” Tungsten Carbide Burr , 2” Tungsten Carbide Burr , 5/8” Tungsten Carbide Burr

SL-1 Tungsten Carbide Burr Double Cut For Die Grinder 1/4" X 5/8" With 2" Overall Length

SL-1 Tungsten Carbide Burr Double Cut For Die Grinder

SL-1 Tungsten Carbide Burr Double Cut For Die Grinder 1/4" X 5/8" With 2" Overall Length 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/4"

Length of Flute: 5/8"

Shank Diameter: 1/4"

OAL: 2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type L Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
3	3	13	38	8°	L0313	Solid
	5	13	38	10°	L0513	Brazed
	6	13	48	10°	L0613	Brazed
6	6	16	51	14°	L0616	Brazed
	8	22	70	14°	L08254	Brazed
	10	25	70	14°	L1025	Brazed
	12	28	73	14°	L1228	Brazed
	16	33	78	14°	L1633	Brazed
	19	38	83	14°	L1938	Brazed
8	12	28	73	14°	L1228	Brazed
	16	33	78	14°	L1633	Brazed
	19	38	83	14°	L1938	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
1/8''	1/8''	1/2''	1-1/2"	8°	SL-42	Solid
1/4''	5/16"	7/8"	2-3/4"	14°	SL-2	Brazed
	3/8''	1-1/16"	2-15/16	14°	SL-3	Brazed
	1/2''	1-1/8"	3"	14°	SL-4	Brazed
	5/8''	1-5/16"	3-1/16"	14°	SL-5	Brazed
	5/8''	1-7/16"	3-1/5"	14°	SL-6	Brazed
	3/4''	1-5/8"	3-3/8"	14°	SL-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type L burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
