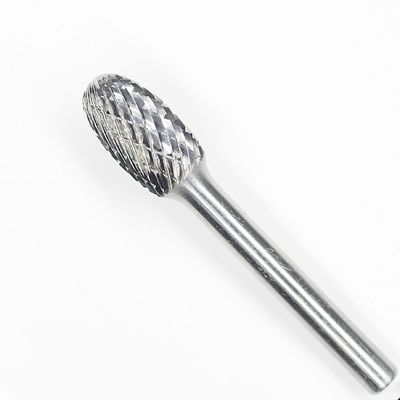

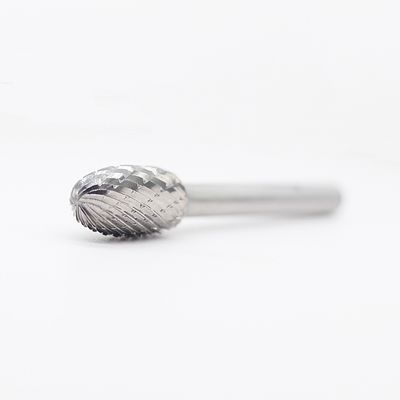

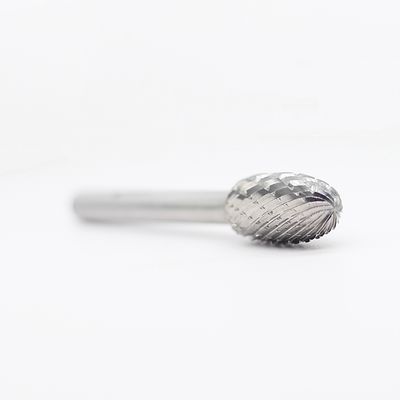

SG-51 Tree Point End Carbide Burr Die Grinder Bits 1/4" X 3/8" on 1/8" Shank

Large Image : SG-51 Tree Point End Carbide Burr Die Grinder Bits 1/4" X 3/8" on 1/8" Shank

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SE-51

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Oval Shape
Cut Diameter:	1/4 Inch	Cut Length:	3/8 Inch
Shank Diameter:	1/8 Inch	Overall Length:	1-8/9 Inch
Flute Type:	Standard Double Cut	Suitable For:	Machining Surface Profile Of Workpiece
Application:	Deburring, Shaping, And Finishing	Package Quantity:	1
Max Rpm:	50,000
Highlight:	Rotary die grinder burr bits , die grinder burr bits 1/4 , Carving 1 8 shank carbide burr

SG-51 Tree Point End Carbide Burr Die Grinder Bits 1/4" X 3/8" on 1/8" Shank

SE-51 Carbide Rotary File With 1/8" Shank

SG-51 Tree Point End Carbide Burr Die Grinder Bits 1/4" X 3/8" on 1/8" Shank 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3/8"

Length of Flute: 5/8"

Shank Diameter: 1/4”

OAL: 2-3/8"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type E Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	7	38	E0306	Solid
	5	8	46	E0508	Brazed
	6	10	48	E0610	Brazed
6	6	10	50	E0610	Brazed
	8	13	58	E0813	Brazed
	10	16	61	E1016	Brazed
	12	20	65	E1220	Brazed
	16	25	70	E1625	Brazed
	19	25	70	E1925	Brazed
8	12	20	65	E1220	Brazed
	16	25	70	E1625	Brazed
	19	25	70	E1925	Brazed
Inch Standard
1/8''	3/16"	9/32"	1-1/2"	SE-53	Solid
1/4''	1/4"	3/8"	64.05mm	SE-1	Brazed
	3/8"	5/8"	2-3/8"	SE-3	Brazed
	1/2"	7/8"	2-5/8"	SE-5	Brazed
	5/8"	1"	2-3/4"	SE-6	Brazed
	3/4"	1"	2-3/4"	SE-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type E burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
