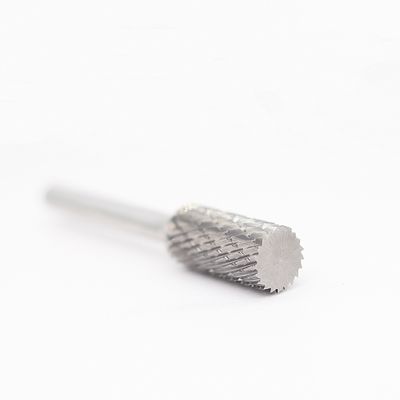

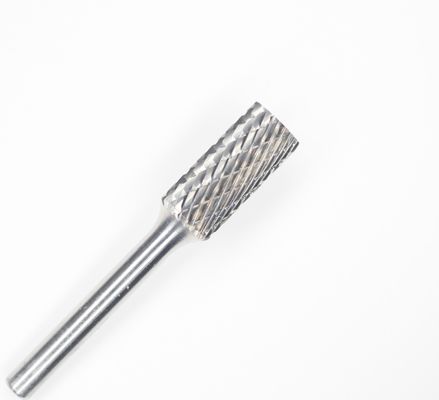

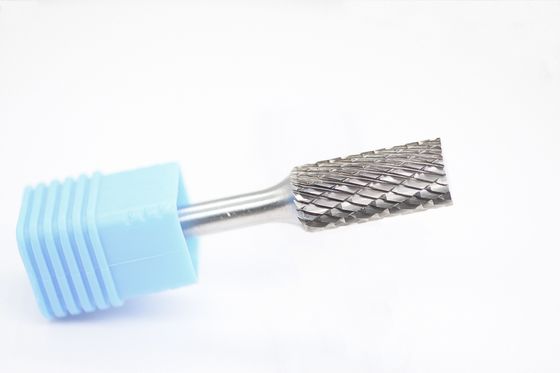

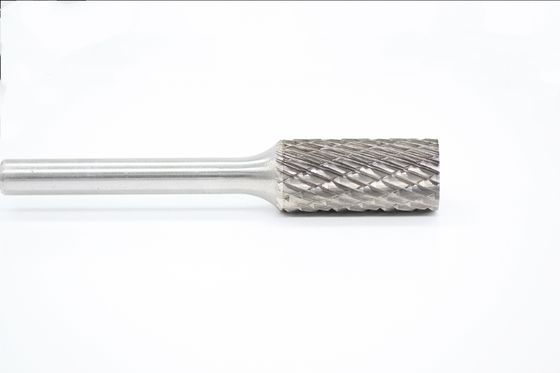

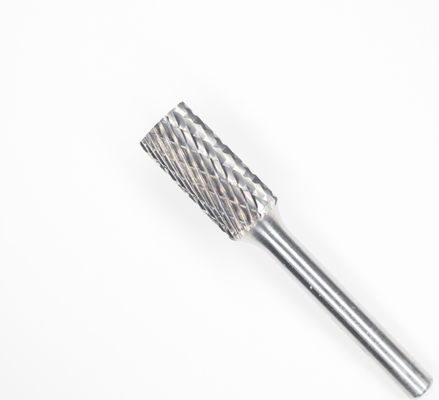

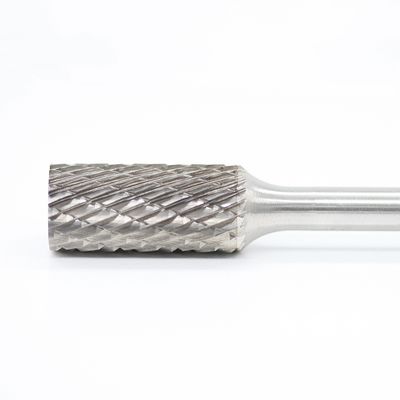

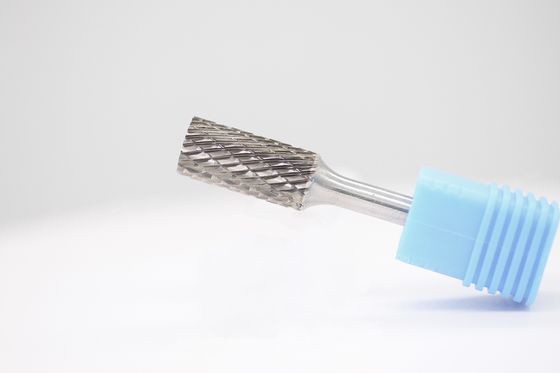

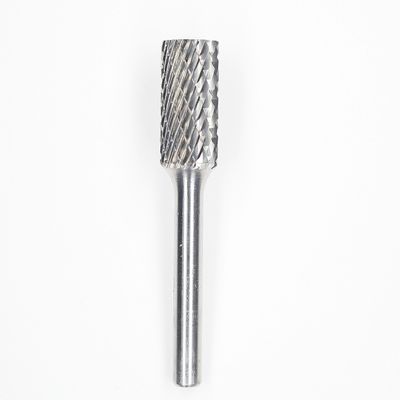

SA-2 Cylinder Without End Cut Carbide Burrs 5/16" X 3/4" With 1/4" Shank Standard Double Cut

Name: SA-2 Cylinder Without End Cut Carbide Burrs 5/16" X 3/4" With 1/4" Shank Standard Double Cut
Brand: CHENGDU BABOS CUTTING TECH CO.,LTD
SKU: SA-2
Availability: InStock

Large Image : SA-2 Cylinder Without End Cut Carbide Burrs 5/16" X 3/4" With 1/4" Shank Standard Double Cut

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SA-2

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000 per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Cylinder With End Cut
Cut Diameter:	5/16 Inch	Cut Length:	3/4 Inch
Shank Diameter:	1/4 Inch	Overall Length:	2-1/2 Inch
Flute Type:	Standard Double Cut	Suitable For:	Machining Surface Profile Of Workpiece
Application:	Deburring, Shaping, And Finishing	Package Quantity:	1
Max Rpm:	50,000
Highlight:	1/4” Shank Carbide Burrs , 3/4” Carbide Burrs , 5/16” Carbide Burrs

SA-2 Cylinder Without End Cut Burrs 5/16" X 3/4" With 1/4" Shank Standard Double Cut

Description:

The SA-2 tungsten carbide burr is a cylindrical burr without an end cut, meaning it has cutting edges only along the sides of the cylinder and not on the tip. This design makes it ideal for material removal along flat surfaces without cutting into the end of the workpiece.

The SA-2 burr is often chosen for tasks where you need to smooth or shape a surface without drilling or plunging into the material.

SA-2 Cylinder Without End Cut Burrs For Die Grinder On 1/4" Shank

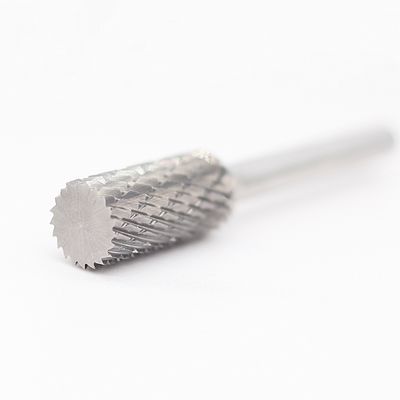

SA-2 Cylinder Without End Cut Carbide Burrs 5/16" X 3/4" With 1/4" Shank Standard Double Cut 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter: 5/16”

Length of Flute: 3/4”

Shank Diameter: 1/4”

OAL: 2-1/2"

Cut Type: Standard Double Cut

Other Available Sizes Related to SA Carbide Burrs Both In Metric And Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	1.5	6	38	A1506	Solid
	2	11	38	A0211	Solid
	2.5	12	38	A2512	Solid
	3	13	38	A0313	Solid
	4	13	51	A0413	Brazed
	5	13	51	A0513	Brazed
	6	13	51	A0613	Brazed
6	6	18	63	A0618	Brazed
	6	20	65	A0612	Brazed
	8	20	65	A0820	Brazed
	10	25	70	A1020	Brazed
	11	25	70	A1125	Brazed
	12	25	70	A1225	Brazed
	16	25	70	A1625	Brazed
	19	25	70	A1925	Brazed
	25	25	70	A2525	Brazed
8	12	25	70	A1225	Brazed
	16	25	70	A1625	Brazed
	19	25	70	A1925	Brazed
	25	25	70	A2525	Brazed
Inch Standard
1/8''	1/16"	1/4"	1-1/2"	SA-41	Solid
	3/32"	3/8"	1-1/2"	SA-63	Solid
	3/16"	1/2"	1/8"	SA-81	Brazed
1/4''	1/8"	1/2"	2"	SA-11	Brazed
	1/4"	1/2"	2''	SA-51	Brazed
	1/6"	1"	2''	SA-1L	Brazed
	1/5"	5/8''	2"	SA-1	Brazed
	3/8"	3/4''	2-1/2"	SA-3	Brazed
	7/16"	1"	3-1/4"	SA-4	Brazed
	1/2"	1"	2-3/4"	SA-5	Brazed
	5/8"	1"	2-3/4"	SA-6	Brazed
	3/4"	1"	2-3/4"	SA-7	Brazed
	7/8"	1"	2-3/4"	SA-8	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about SA type burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
