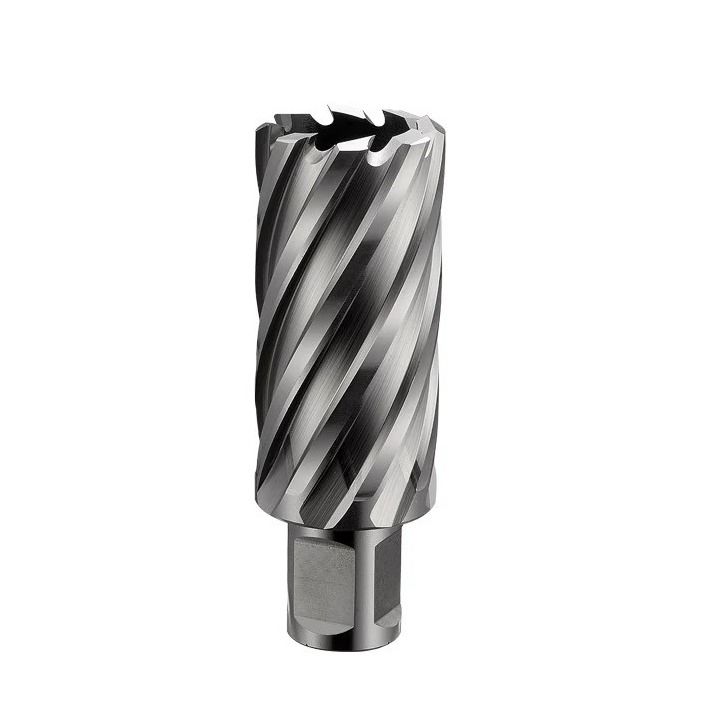

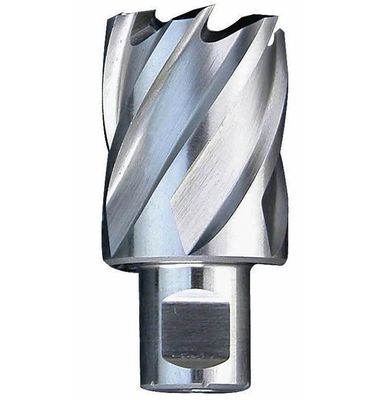

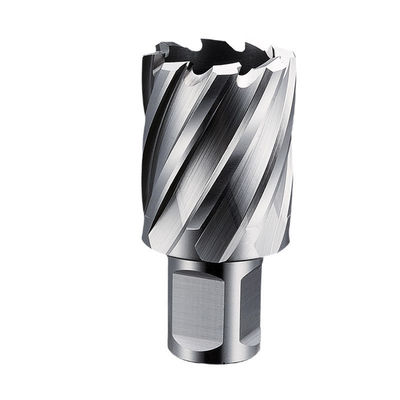

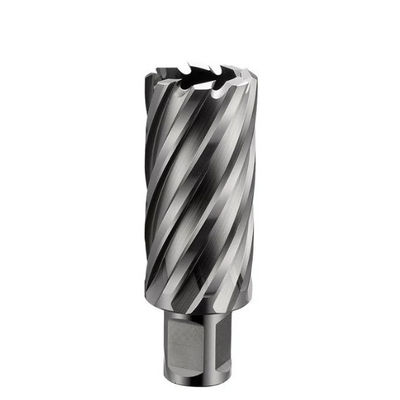

50mm Cutting Depth Spiral HSS Annular Cutter With 19.05mm Weldon Shank
Product Description:
BABOS High Speed Steel Annular Cutters are specially designed tools for fast and efficient cutting. They feature unique teeth geometry that allows for clear cutting and a fast feed rate. This means less time spent on cutting and more time for other tasks.
One of the key advantages of BABOS High Speed Steel Annular Cutters is their ability to produce a smooth hole surface. This is due to the high-quality steel used in the cutters which ensures a clean cut. The cutters also produce less vibration, which results in greater precision and a longer tool lifespan.
Features:
- Product Name: HSS Annular Cutter
- Material: High Speed Steel
- Service: OEM
- Shank Diameter: 19.05mm
- Cutting Depth: 50mm
- Surface Finish: Bright(Uncoated)
- CNC-machined high precision drill bit cutter
- High Speed Steel Hole Cutter
- HSS Annular Cutter
-
Technical Parameters:
| Product Name: |
High Speed Steel Annular Cutter |
| Material: |
High Speed Steel |
| Surface Finish: |
Bright(Uncoated) |
| Cutting Depth: |
50mm |
| Shank Diameter: |
19.05mm |
| Cutting Diameter: |
25mm |
| Application: |
Metal Cutting |
| Shank Type: |
Weldon Shank |
| Service: |
OEM |
| Flute Type: |
Spiral |
| Package Quantity: |
1 |
HSS Annular Cutter With Weldon Shank is a CNC-machined high precision drill bit cutter that is ideal for metal cutting applications.
Applications:
The HSS annular cutters that are available can be used for a variety of applications. They are designed to drill through several materials including steel, copper, aluminum, stainless steel, and plastic. Whether you are working with a plate or a pipe form, these annular cutters can get the job done.
These annular cutters are designed for use in a variety of industries. Whether you are working in the construction or manufacturing industry, these cutters can help you get the job done. They are ideal for use in drilling holes in steel beams, plates, and pipes, as well as drilling through other materials such as plastic and aluminum.
Product Specifications:
Cut Dia.
(mm) |
Cut Depth
(mm) |
Shank Dia.
(mm) |
Item No. |
Cut Dia.
(mm) |
Cut Depth
(mm) |
Shank Dia.
(mm) |
Item No. |
| 12 |
50 |
19.05 |
HSSWSN120501905 |
39 |
50 |
19.05 |
HSSWSN390501905 |
| 13 |
50 |
19.05 |
HSSWSN130501905 |
40 |
50 |
19.05 |
HSSWSN400501905 |
| 14 |
50 |
19.05 |
HSSWSN140501905 |
41 |
50 |
19.05 |
HSSWSN410501905 |
| 15 |
50 |
19.05 |
HSSWSN150501905 |
42 |
50 |
19.05 |
HSSWSN420501905 |
| 16 |
50 |
19.05 |
HSSWSN160501905 |
43 |
50 |
19.05 |
HSSWSN430501905 |
| 17 |
50 |
19.05 |
HSSWSN170501905 |
44 |
50 |
19.05 |
HSSWSN440501905 |
| 18 |
50 |
19.05 |
HSSWSN180501905 |
45 |
50 |
19.05 |
HSSWSN450501905 |
| 19 |
50 |
19.05 |
HSSWSN190501905 |
46 |
50 |
19.05 |
HSSWSN460501905 |
| 20 |
50 |
19.05 |
HSSWSN200501905 |
47 |
50 |
19.05 |
HSSWSN470501905 |
| 21 |
50 |
19.05 |
HSSWSN210501905 |
48 |
50 |
19.05 |
HSSWSN480501905 |
| 22 |
50 |
19.05 |
HSSWSN220501905 |
49 |
50 |
19.05 |
HSSWSN490501905 |
| 23 |
50 |
19.05 |
HSSWSN230501905 |
50 |
50 |
19.05 |
HSSWSN500501905 |
| 24 |
50 |
19.05 |
HSSWSN240501905 |
51 |
50 |
19.05 |
HSSWSN510501905 |
| 25 |
50 |
19.05 |
HSSWSN250501905 |
52 |
50 |
19.05 |
HSSWSN520501905 |
| 26 |
50 |
19.05 |
HSSWSN260501905 |
53 |
50 |
19.05 |
HSSWSN530501905 |
| 27 |
50 |
19.05 |
HSSWSN270501905 |
54 |
50 |
19.05 |
HSSWSN540501905 |
| 28 |
50 |
19.05 |
HSSWSN280501905 |
55 |
50 |
19.05 |
HSSWSN550501905 |
| 29 |
50 |
19.05 |
HSSWSN290501905 |
56 |
50 |
19.05 |
HSSWSN560501905 |
| 30 |
50 |
19.05 |
HSSWSN300501905 |
57 |
50 |
19.05 |
HSSWSN570501905 |
| 31 |
50 |
19.05 |
HSSWSN310501905 |
58 |
50 |
19.05 |
HSSWSN580501905 |
| 32 |
50 |
19.05 |
HSSWSN320501905 |
59 |
50 |
19.05 |
HSSWSN590501905 |
| 33 |
50 |
19.05 |
HSSWSN330501905 |
60 |
50 |
19.05 |
HSSWSN600501905 |
| 34 |
50 |
19.05 |
HSSWSN340501905 |
61 |
50 |
19.05 |
HSSWSN610501905 |
| 35 |
50 |
19.05 |
HSSWSN350501905 |
62 |
50 |
19.05 |
HSSWSN620501905 |
| 36 |
50 |
19.05 |
HSSWSN360501905 |
63 |
50 |
19.05 |
HSSWSN630501905 |
| 37 |
50 |
19.05 |
HSSWSN370501905 |
64 |
50 |
19.05 |
HSSWSN640501905 |
| 38 |
50 |
19.05 |
HSSWSN380501905 |
65 |
50 |
19.05 |
HSSWSN650501905 |
*Please contact us if you are looking for the special non-standard HSS annular cutters. We can design and make special non-standard HSS annular cutters according to client's drawings.
| Weldon shank |
Universal Shank |
FEIN Quick-In Shank |
 |
|
|
